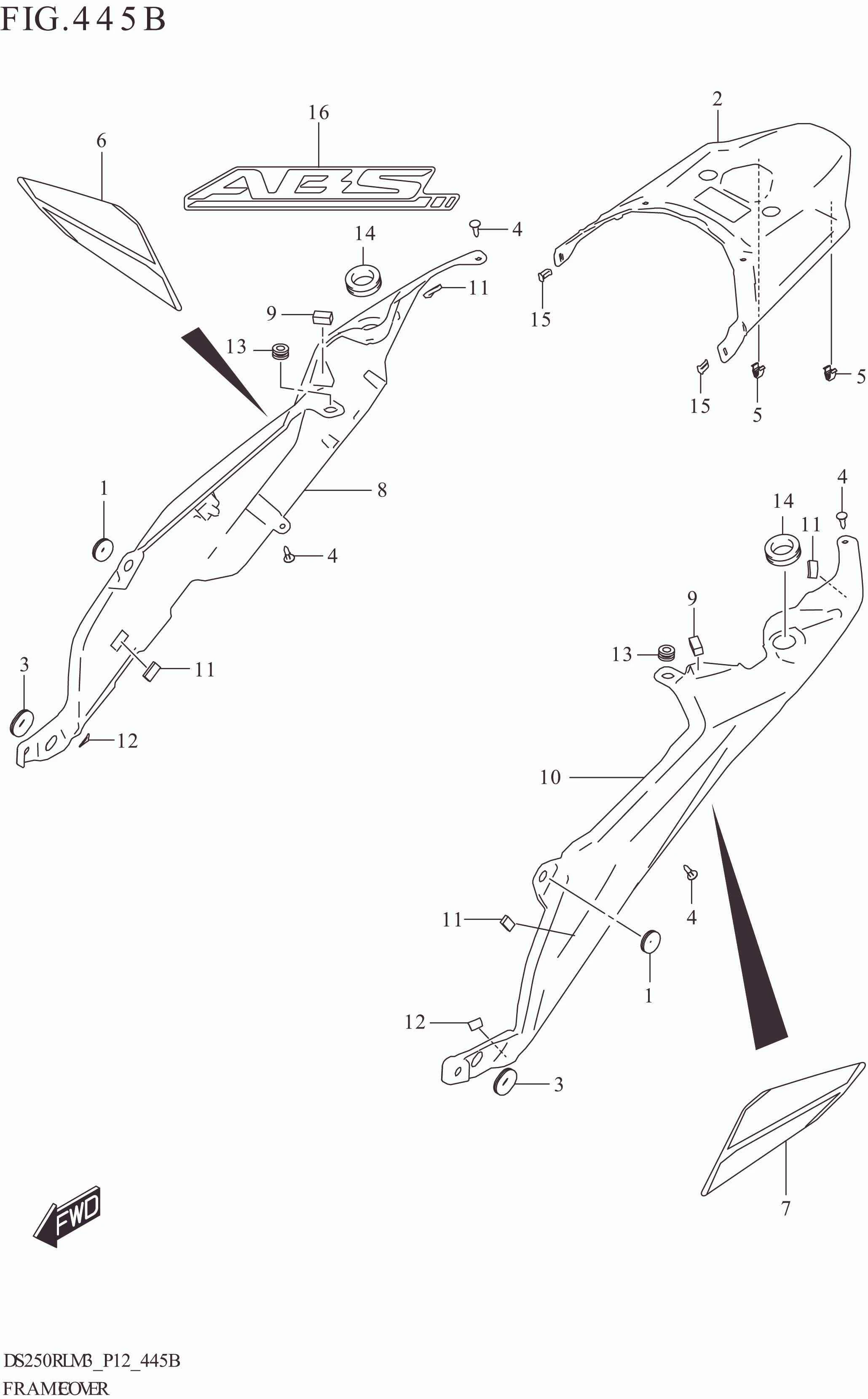

FIG. 445B FRAME COVER

FIG. 445B FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47162-30H00-000 CUSHION (8X26X7) 4 Rp10.000
2 47311-20L00-000 COVER,FRAME CENTER 1 Rp36.500
3 47315-41K00-000 CUSHION (8-14X26-32X7) 2 Rp6.500
4-1 09409-06346-000 CLIP 2 Rp3.500
4-2 09409-06L07-000 CLIP 2 Rp10.000
5-1 09409-08014-000 CLIP 2 Rp3.000
5-2 09409-08L09-000 CLIP 2 Rp8.500
6-1 68135-20L00-CDT TAPE,FRAME COVER REAR,R 1 Rp9.500
6-2 68135-20L00-CDU TAPE,FRAME COVER REAR,R 1 Rp13.000
6-3 68135-20L00-CDV TAPE,FRAME COVER REAR,R 1 Rp13.000
7-1 68145-20L00-CDT TAPE,FRAME COVER REAR,L 1 Rp9.500
7-2 68145-20L00-CDU TAPE,FRAME COVER REAR,L 1 Rp13.000
7-3 68145-20L00-CDV TAPE,FRAME COVER REAR,L 1 Rp13.000
8-1 47131-20L00-YU1 COVER,FRAME REAR,R (YELLOW) 1 Rp237.000
8-3 47131-20L00-QVN COVER,FRAME REAR,R (ORANGE) 1 Rp237.000
8-2 47131-20L00-YVB COVER,FRAME REAR,R (BLACK) 1 Rp237.000
9 47132-20L00-000 CUSHION 2 Rp5.000
10-1 47231-20L00-YU1 COVER,FRAME REAR,L (YELLOW) 1 Rp237.000
10-2 47231-20L00-YVB COVER,FRAME REAR,L (BLACK) 1 Rp237.000
10-3 47231-20L00-QVN COVER,FRAME REAR,L (ORANGE) 1 Rp237.000
11 63114-41K00-000 CUSHION,FENDER RR FR 4 Rp5.500
12 94433-05J00-000 CUSHION (10X15X1) 2 Rp5.500
13 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
14 09320-20011-000 CUSHION (20X32X9) 2 Rp28.000
15 09409-08009-000 CLIP 2 Rp8.000
16 68155-34J00-J7A EMBLEM,ABS (GRAY,BLACK) 1 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
