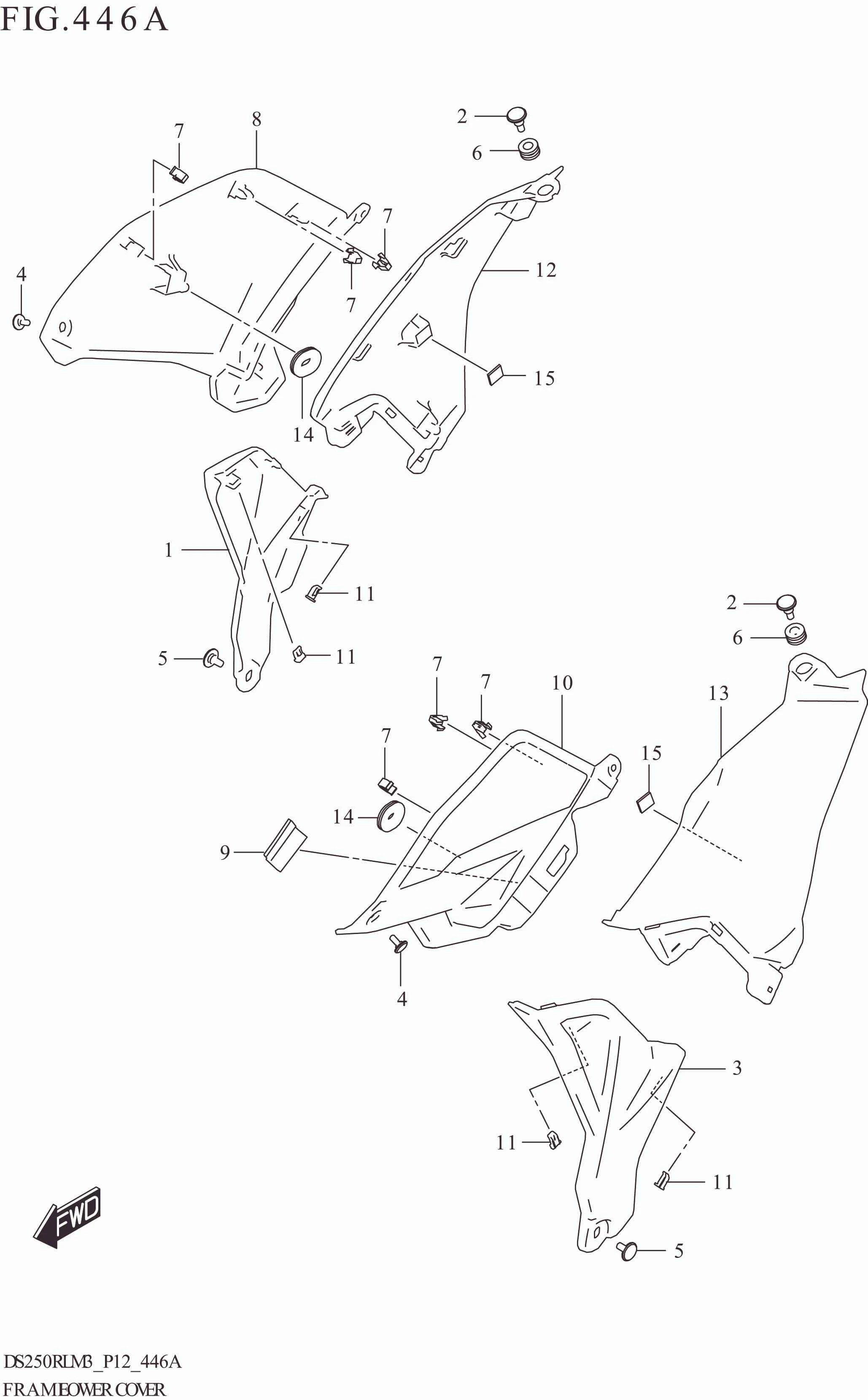

FIG. 446A FRAME LOWER COVER

FIG. 446A FRAME LOWER COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	47111-20L00-YHG	COVER,FRAME,R (GRAY)	1	Rp137.500
2	47123-41K00-000	SCREW (6X20)	2	Rp11.500
3	47211-20L00-YHG	COVER,FRAME,L (GRAY)	1	Rp137.500
4	09139-05092-000	SCREW (5X13)	2	Rp8.000
5	09139-06230-000	SCREW (6X13)	2	Rp22.000
6	09320-09016-000	CUSHION (9X18X9.5)	4	Rp4.000
7-1	09409-08014-000	CLIP	8	Rp3.000
7-2	09409-08L09-000	CLIP	8	Rp8.500
8	47121-20L00-000	COVER,FRAME FRONT,R	1	Rp35.000
9	47122-20L00-000	CUSHION	1	Rp4.000
10	47221-20L00-000	COVER,FRAME FRONT,L	1	Rp36.500
11	09409-08009-000	CLIP	6	Rp8.000
12	47112-20L00-000	COVER,FRAME UPPER,R	1	Rp31.500
13	47212-20L00-000	COVER,FRAME UPPER,L	1	Rp31.500
14	47315-41K00-000	CUSHION (8-14X26-32X7)	4	Rp6.500
15	94642-10GA0-000	CUSHION (15X15X2)	2	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
