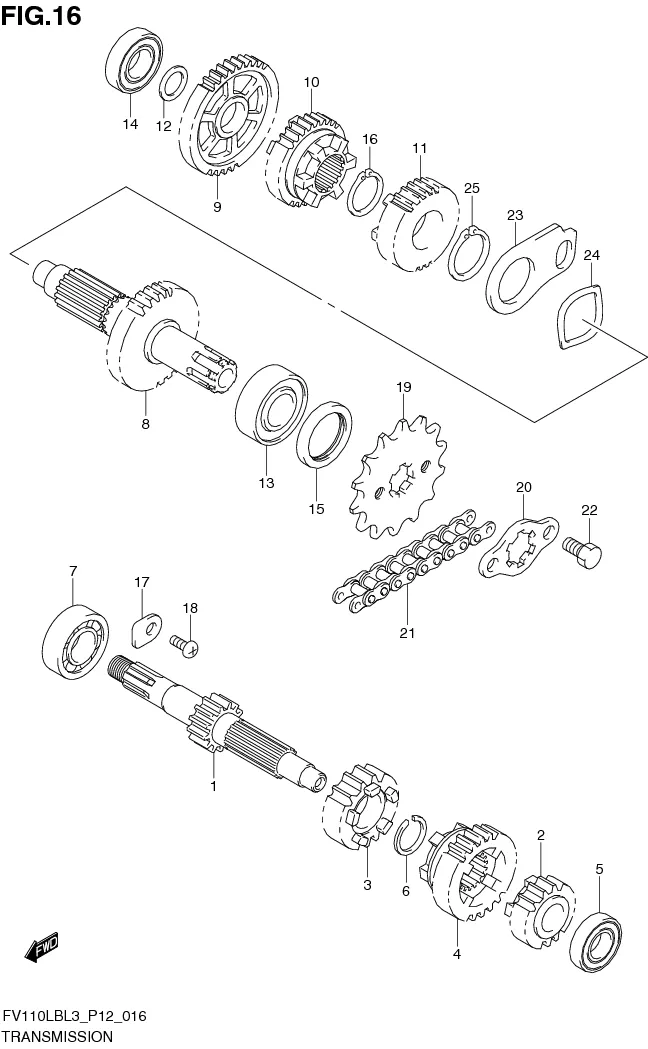

FIG. 16 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24120-22J00-000 SUB: 24120B22J00N000	SHAFT, COUNTER (NT:11)	1	Rp227.000
2	24221-22J00-000 SUB: 24221B22J00N000	GEAR, 2ND DRIVE (NT:16)	1	Rp87.000
3	24231-22J00-000 SUB: 24231B22J00N000	GEAR, 3RD DRIVE (NT:19)	1	Rp87.500
4	24241-22J00-000 SUB: 24241B22J00N000	GEAR, 4TH DRIVE	1	Rp100.500
5	08123-60010-000 SUB: 08123B60010N000	BEARING LH	1	Rp24.000	LH
6	09380-17007-000 SUB: 09380B17007N000	CIRCLIP	1	Rp11.000
7	08110-62030-000 SUB: 08110-62030L000	BEARING RH	1	Rp33.500	RH
8	24130-22J00-000 SUB: 24130B22J00N000	SHAFT, DRIVE	1	Rp300.500
9	24311-22J00-000 SUB: 24311B22J00N000	GEAR, 1ST DRIVEN (NT:33)	1	Rp125.500
10	24331-22J00-000 SUB: 24331B22J00N000	GEAR, 3RD DRIVEN (NT:26)	1	Rp108.000
11	24341-22J00-000 SUB: 24341B22J00N000	GEAR, 4TH DRIVEN (NT:23)	1	Rp106.000
12	24313-22J00-000 SUB: 24313B22J00N000	WASHER, 1ST DRIVEN GEAR	1	Rp9.000
13	08110-62030-000 SUB: 08110-62030L000	BEARING LH	1	Rp33.500	LH
14	08123-62017-000 SUB: 08123-62017L000	BEARING RH	1	Rp29.000	RH
15	09283-17L04-000 SUB: 09283B17L04N000	OIL SEAL	1	Rp9.500
16	09380-20009-000 SUB: 09380B20009N000	CIRCLIP	1	Rp10.000
17	24741-20A10-000 SUB: 24741B20A10N000	RETAINER, CENTER SHAFT BEARING	1	Rp3.500
18	02142-0612A-000 SUB: 02142B0612AN000	SCREW	1	Rp4.000
19	27511-22J00-000 SUB: 27511B22J00N000	SPROCKET, ENGINE (NT:14)	1	Rp43.500
20	27512-09G00-000 SUB: 27512B09G00N000	PLATE, ENGINE SPROCKET	1	Rp8.500
21	27600-23J10-102 SUB: 27600B23J10N102	CHAIN ASSY, DRIVE (RK420SL)	1	Rp107.000
22	01500-0610A-000 SUB: 01500B0610AN000	BOLT	2	Rp6.500
23	DISCONTINUE SUB: 25361B23F10N000	PLATE, ROTARY STOP	1	-
24	DISCONTINUE SUB: 09164B25002N000	WASHER	1	-
25	08331-31259-000 SUB: 08331B31259N000	CIRCLIP	1	Rp5.000
