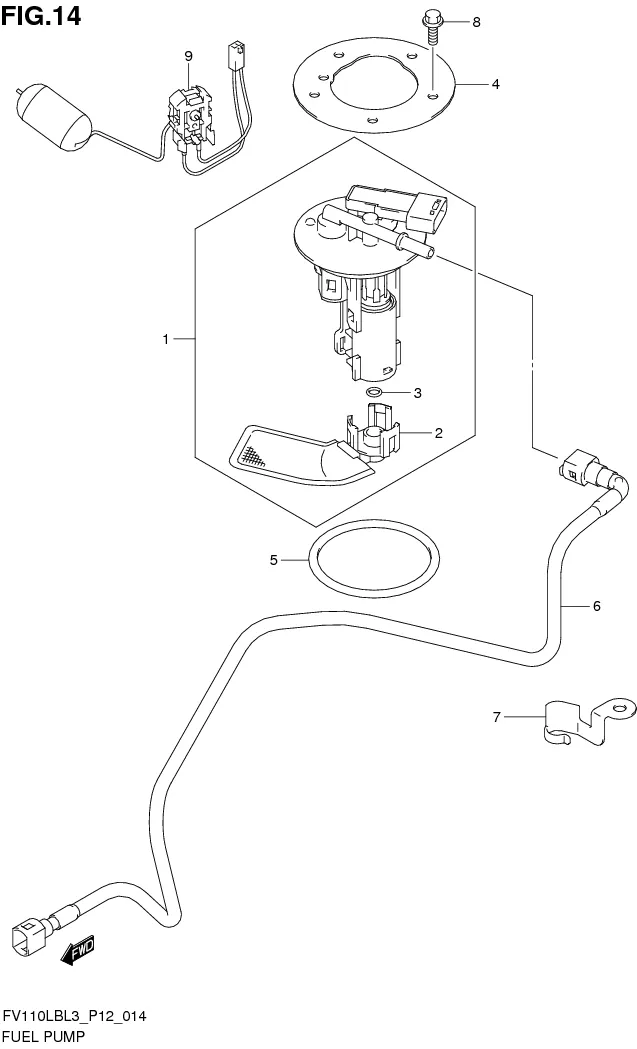

FIG. 14 FUEL PUMP

FIG. 14 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-22J00-000
SUB: 15100B22J00N000		 PUMP ASSY, FUEL 1 Rp951.500
2 15420-22J00-000
SUB: 15420B22J00N000		 .FILTER, SUCTION 1 Rp73.500
3 15424-09JA0-000
SUB: 15424B09JA0N000		 .O RING 1 Rp12.000
4 15121-09JB0-000
SUB: 15121B09JB0N000		 PLATE, FUEL PUMP 1 Rp10.000
5 15201-09JA0-000
SUB: 15201B09JA0N000		 O RING, FUEL PUMP 1 Rp54.500
6 15810-22J00-000
SUB: 15810B22J00N000		 HOSE, FUEL 1 Rp86.000
7 15891-22J00-000
SUB: 15891B22J00N000		 CLAMP, FUEL HOSE FRONT 1 Rp6.500
8 01547-0610A-000
SUB: 01547B0610AN000		 BOLT 6 Rp3.000
9 34810-22J00-000
SUB: 34810B22J00N000		 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp115.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
