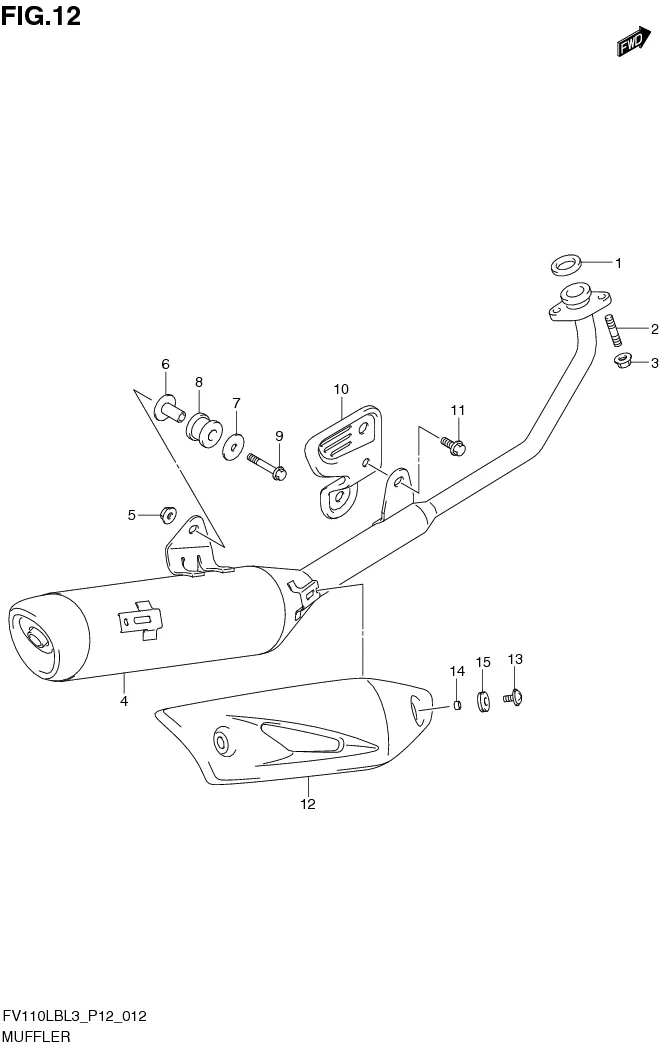

FIG. 12 MUFFLER

FIG. 12 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-30A20-000
SUB: 14181B30A20N000		 GASKET, EXHAUST PIPE 1 Rp4.000
2 09108-08280-000
SUB: 09108B08280N000		 STUD BOLT 2 Rp8.000
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
4 14310-22J30-000
SUB: 14310B22J00N000		 MUFFLER ASSY 1 Rp1.869.000
5 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
6 DISCONTINUE
SUB: 09180B08L01N000		 SPACER 1 -
7 09160-08149-000
SUB: 09160B08149N000		 WASHER (8.5X30X1.6) 1 Rp6.500
8 09320-12L06-000
SUB: 09320B12L06N000		 CUSHION 1 Rp5.500
9 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 1 Rp3.500
10 14410-22J00-000
SUB: 14410B22J00N000		 BRACKET, MUF SPRT 1 Rp30.000
11 01550-0816A-000
SUB: 01550B0816BN000		 BOLT 1 Rp6.000
12 14781-22J10-0V0
SUB: 14780B22J00N000		 COVER, MUFFLER 1 Rp185.000
13 51875-07H30-000
SUB: 51875B07H30N000		 SCREW, MUFFLER COVER 2 Rp9.000
14 09180-06343-000
SUB: 09180B06343N000		 SPACER 2 Rp12.500
15 09320-08082-000
SUB: 09320B08082N000		 CUSHION 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
