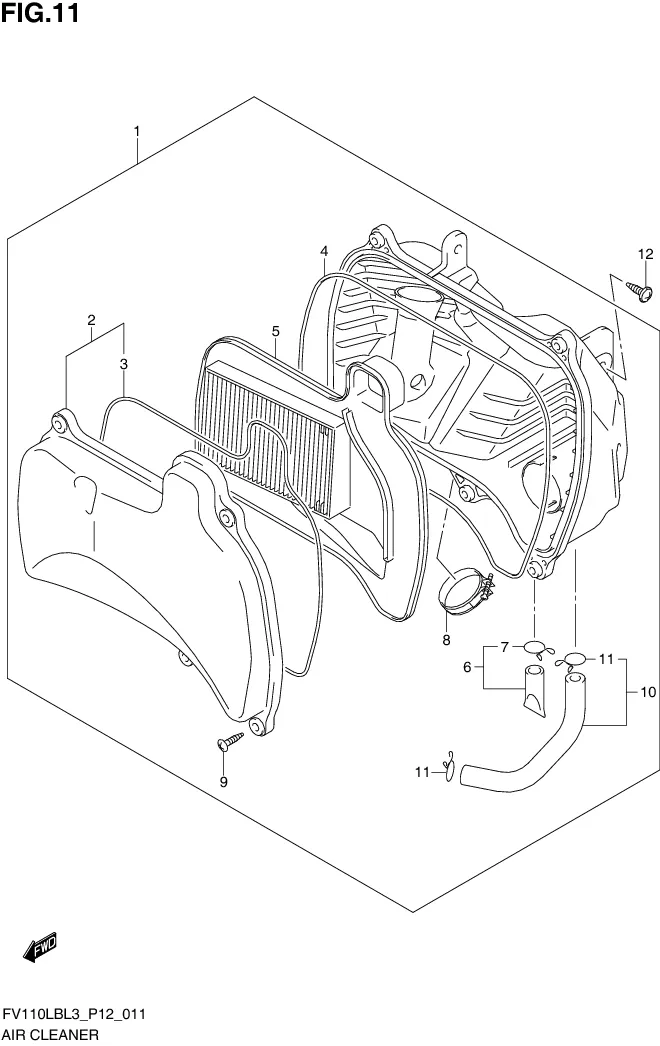

FIG. 11 AIR CLEANER

FIG. 11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-22J00-000
SUB: 13700B22J00N000		 CLEANER ASSY, AIR 1 Rp233.500
2 13740-22J00-000
SUB: 13740B22J00N000		 .CAP 1 Rp33.000
3 13746-22J00-000
SUB: 13746B22J00N000		 ..GASKET, AIR CLEANER CAP 1 Rp12.000
4 13756-22J00-000
SUB: 13756B22J00N000		 .GASKET 1 Rp13.500
5 13780-22J00-000
SUB: 13780B22J00N000		 .FILTER, AIR CLEANER 1 Rp49.500
6 13870-10J00-000
SUB: 13870B10J00N000		 .PLUG, DRAIN 1 Rp43.500
7 09401-11101-000 ..CLIP 1 Rp14.000
8 13826-22J00-000
SUB: 13826B22J00N000		 .CLAMP 1 Rp12.000
9 03541-0520A-000
SUB: 03541B0520AN000		 .SCREW 5 Rp3.500
10 13850-22J00-000
SUB: 13850B22J00N000		 .TUBE, BREATHER 1 Rp28.000
11 09401-14101-000 ..CLIP 2 Rp19.000
12 09136-06062-000
SUB: 09136B06017N000		 SCREW (6X16) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
