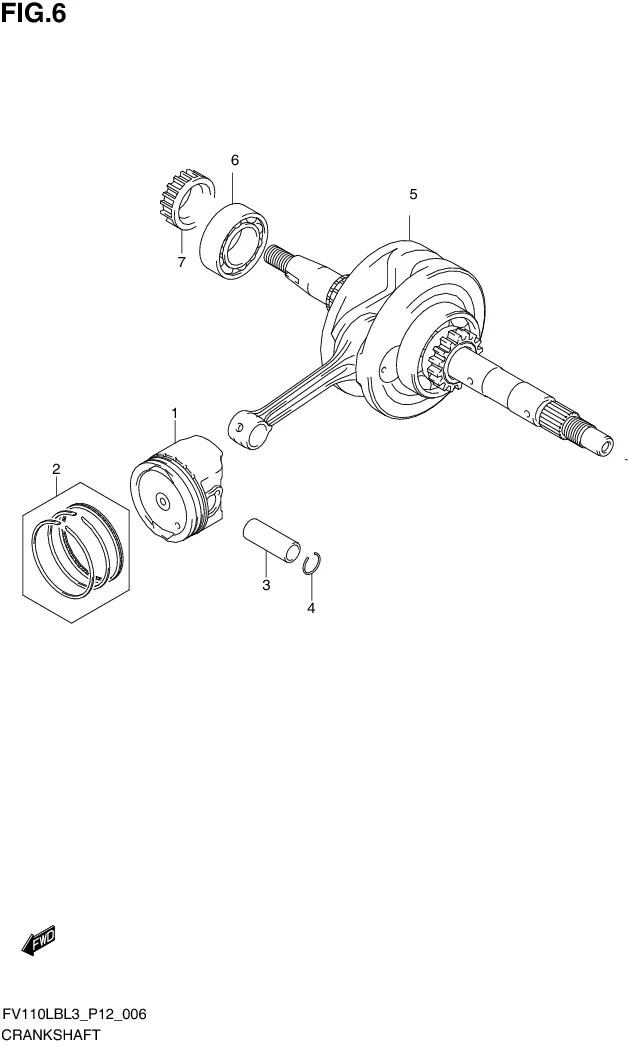

FIG. 6 CRANKSHAFT

FIG. 6 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	12111-22J00-0F0 SUB: 12111B22J00N0F0	PISTON STD	1	Rp89.500
1-2	12111-22J00-050 SUB: 12111B22J00N050	PISTON (OS:0.5)	1	Rp89.500
2-1	12140-22J00-0F0 SUB: 12140B22J00N000	RING SET, PISTON	1	Rp43.000
2-2	12140-22J00-050 SUB: 12140B22J00N050	RING SET, PISTON (OS:0.5)	1	Rp50.500
3	12151-09J00-000 SUB: 12151B09J00N000	PIN, PISTON	1	Rp9.500
4	09381-13001-000 SUB: 09381B13001N000	SNAP RING	2	Rp3.000
5	12200-22J11-000 SUB: 12200B22J10N000	CRANKSHAFT ASSY	1	Rp965.000
6	09262-22L01-000 SUB: 09262B22L01N000	BEARING CRANKSHAFT,RH	1	Rp73.000
7	16321-22J00-000 SUB: 16321B22J00N000	GEAR, OIL PUMP DRIVE	1	Rp32.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
