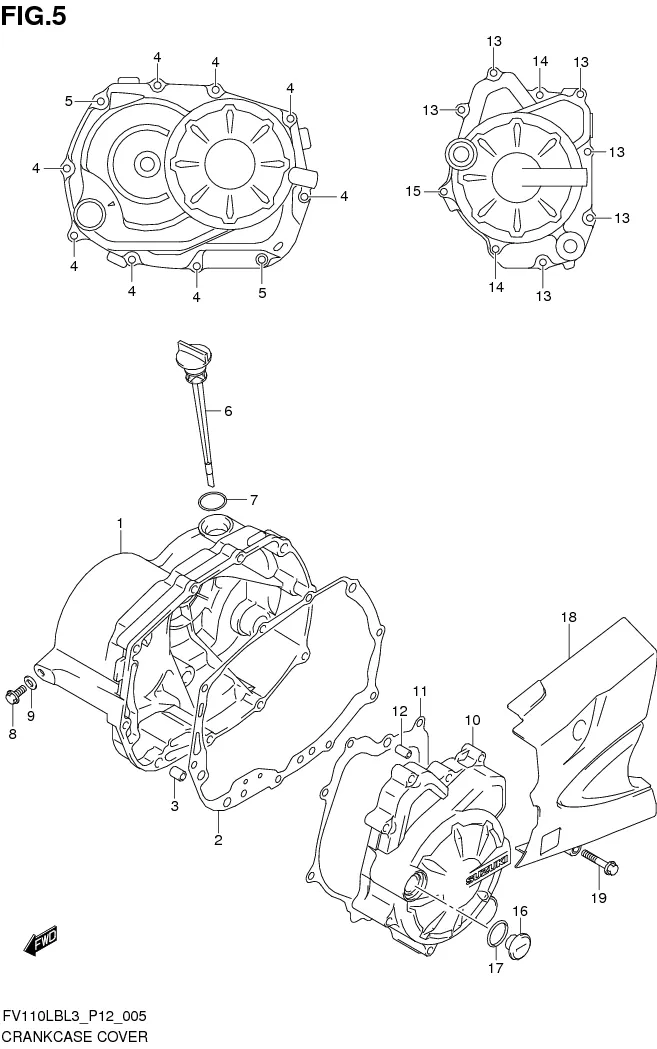

FIG. 5 CRANKCASE COVER

FIG. 5 CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11341-22J00-000 SUB: 11341B22J00N000	COVER, CLUTCH	1	Rp455.000
2	11482-22J00-000 SUB: 11482B22J00N000	GASKET, CLUTCH COVER (NA)	1	Rp18.500
3	09206-08008-000 SUB: 09206B08008N000	PIN (6.3X8X12)	2	Rp4.000
4	01547-0630A-000 SUB: 01547B0630AN000	BOLT	8	Rp6.500
5	01547-0640B-000 SUB: 01547B0640AN000	BOLT	2	Rp7.000
6	11971-22J00-000 SUB: 11971B22J00N000	GAUGE, OIL LEVEL	1	Rp9.000
7	09280-17003-000 SUB: 09280-17003L000	O RING (D:3.1,ID:16.8)	1	Rp2.000
8	01547-0610A-000 SUB: 01547B0612AN000	BOLT	1	Rp3.000
9	09168-06018-000 SUB: 09168B06018N000	GASKET (6.2X13X1.2)	1	Rp8.500
10	11351-22J00-000 SUB: 11351B22J00N000	COVER, MAGNETO	1	Rp495.500
11	11483-22J00-000 SUB: 11483B22J00N000	GASKET, MAGNETO COVER (NA)	1	Rp14.000
12	04211-09129-000	PIN	2	Rp10.500
13	01547-0630A-000 SUB: 01547B0630AN000	BOLT	6	Rp6.500
14	01547-0640B-000 SUB: 01547B0640AN000	BOLT	2	Rp7.000
15	01547-0650A-000 SUB: 01547B0650AN000	BOLT	2	Rp7.000
16	11352-22J00-000 SUB: 11352B22J00N000	PLUG, TOP	1	Rp7.000
17	09280-14011-000 SUB: 09280B14011N000	O RING (D:2.5,ID:13.8)	1	Rp7.500
18	11360-22J00-000 SUB: 11360B22J00N000	COVER, ENGINE SPROCKET	1	Rp38.000
19	01547-0630A-000 SUB: 01547B0630AN000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
