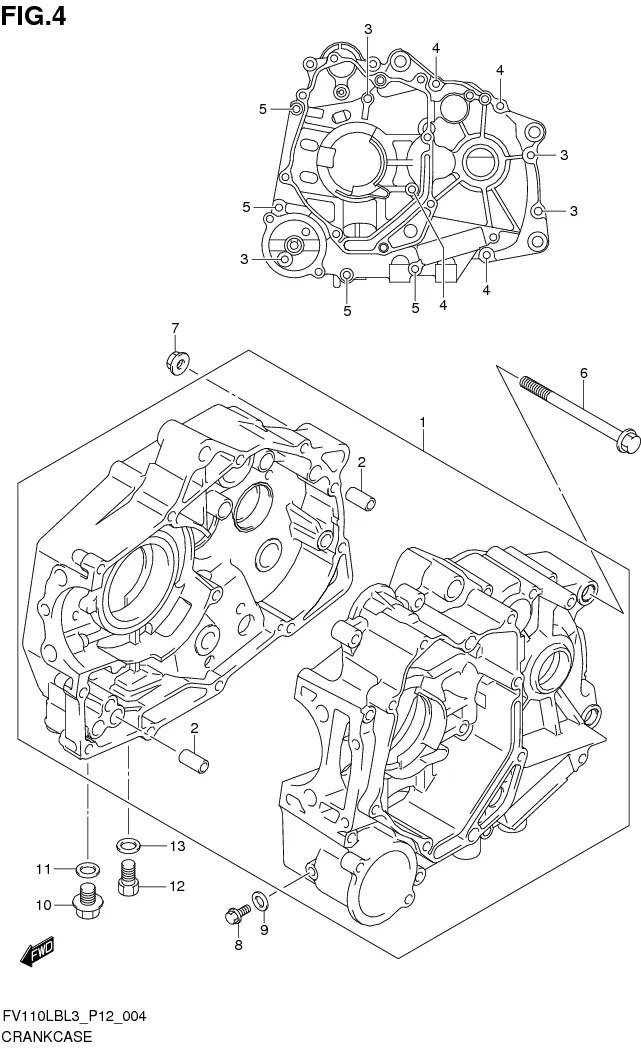

FIG. 4 CRANKCASE

FIG. 4 CRANKCASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11300-22J00-000 SUB: 11300B22J00N000	CRANKCASE ASSY	1	Rp1.185.500
2	09206-10014-000 SUB: 09206B10014N000	.PIN (6.4X10X20)	2	Rp3.000
3	01547-0645A-000 SUB: 01547B0645AN000	.BOLT	4	Rp7.000
4	01547-0655A-000 SUB: 01547B0655AN000	.BOLT	4	Rp7.500
5	01547-0675A-000 SUB: 01547B0675AN000	.BOLT	4	Rp7.500
6	09103-10110-000 SUB: 09103B10110N000	BOLT (10X100)	3	Rp11.500
7	08319-3110A-000 SUB: 08319B3110AN000	NUT	3	Rp4.500
8-1	01547-0610A-000 SUB: 01547B0612AN000	BOLT	1	Rp3.000
8-2	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
9	09168-06018-000 SUB: 09168B06018N000	GASKET (6.2X13X1.2)	1	Rp8.500
10	09247-10015-000 SUB: 09247B10015N000	PLUG (10X12)	1	Rp7.500
11	09168-10L02-000 SUB: 09168B10L02N000	GASKET, OIL DRAIN (NA)	1	Rp2.500
12	01500-1020A-000 SUB: 01500B1020AN000	PLUG	1	Rp4.000	OIL DRAIN
13	09168-10L02-000 SUB: 09168B10L02N000	GASKET, OIL DRAIN (NA)	1	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
