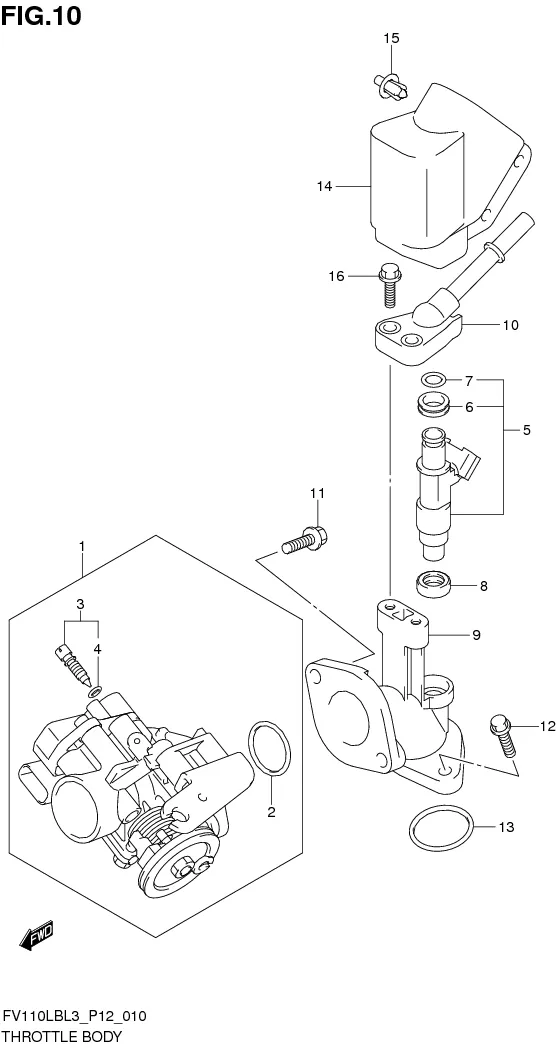

FIG. 10 THROTTLE BODY

FIG. 10 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-22J02-000
SUB: 13400B22J00N000		 BODY ASSY, THROTTLE 1 Rp660.500
2 13295-16HA0-000
SUB: 13295B16HA0N000		 .O RING 1 Rp5.000
3 13662-22J00-000
SUB: 13662B22J00N000		 .ADJSUTER, BAS 1 Rp12.000
4 13453-36F00-000
SUB: 13453B36F00N000		 ..O RING 1 Rp20.500
5 15710-22J00-000
SUB: 15710B22J00N000		 INJECTOR ASSY, FUEL 1 Rp249.500
6 15720-09300-000
SUB: 15720B09300N000		 .GROMMET 1 Rp11.500
7 15710-09300-000
SUB: 15710B09300N000		 .O RING 1 Rp13.500
8 15715-16HC0-000
SUB: 15715B16HC0N000		 INSULATOR, FUEL INJECTOR 1 Rp36.000
9 13111-22J00-000
SUB: 13111B22J00N000		 PIPE, INTAKE 1 Rp79.500
10 15830-22J00-000 JOINT, FUEL HOSE 1 Rp40.500
11 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
12 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
13 09280-26011-000
SUB: 09280B26011N000		 O RING (D:2.4,ID:25.7) 1 Rp8.000
14 15719-22J00-000
SUB: 15719B22J00N000		 COVER, FUEL INJECTOR 1 Rp26.500
15 09409-06329-000
SUB: 09409B06329N000		 CLIP 2 Rp7.000
16 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
