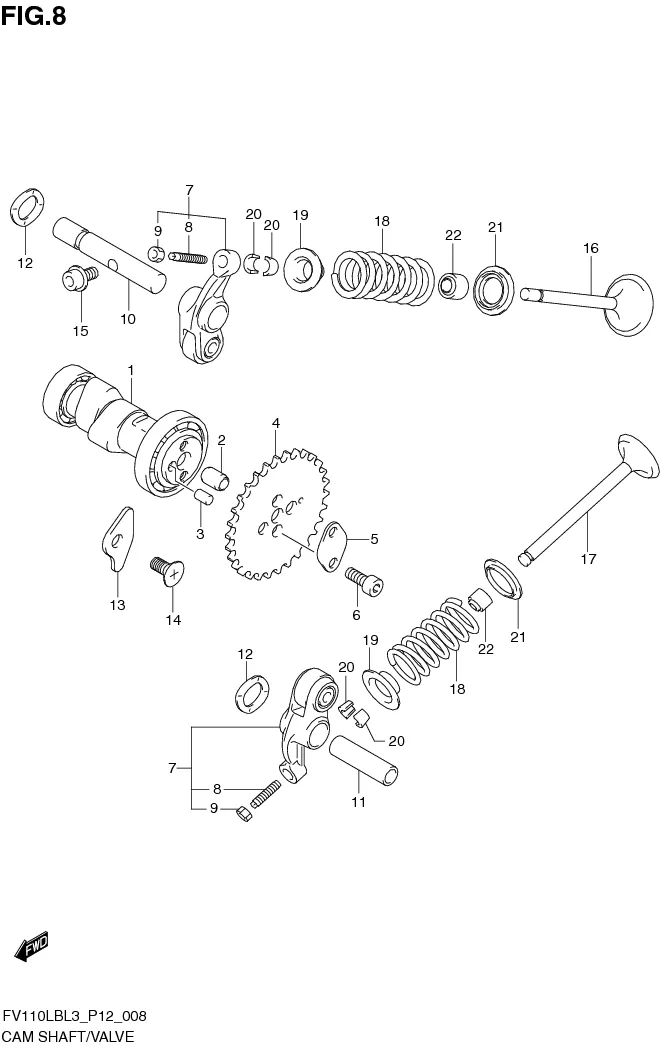

FIG. 8 CAMSHAFT/VALVE

FIG. 8 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-22J00-000
SUB: 12710B22J00N000		 CAM SHAFT 1 Rp223.000
2 09206-08008-000
SUB: 09206B08008N000		 PIN (6.3X8X12) 1 Rp4.000
3 09261-05005-000
SUB: 09261B05005N000		 PIN (5X8) 1 Rp3.000
4 DISCONTINUE
SUB: 12741B22J00N000		 SPROCKET, CAM SHAFT (NT:34) 1 -
5 12714-08H00-000
SUB: 12714B08H00N000		 WASHER, SPROCKET 1 Rp16.500
6 09106-05028-000
SUB: 09106B05028N000		 BOLT (5X15) 2 Rp6.500
7 12840-09J30-000
SUB: 12840B09J00N000		 ARM, VALVE ROCKER 2 Rp141.500
8 12842-09J20-000
SUB: 12842B09J00N000		 .SCREW, TAPPET ADJUSTING 2 Rp4.500
9 12843-27A00-000 .NUT, TAPPET ADJUSTING 2 Rp19.000
10 12861-22J00-000
SUB: 12861B22J00N000		 SHAFT, ROCKER ARM INTAKE 1 Rp13.500
11 12871-22J00-000
SUB: 12871B22J00N000		 SHAFT, ROCKER ARM EXHAUST 1 Rp8.500
12 09164-10017-000
SUB: 09164B10012N000		 WASHER 2 Rp10.500
13 12862-22J00-000
SUB: 12862B22J00N000		 RETAINER, CAMSHAFT 1 Rp20.500
14 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
15 07120-0510A-000
SUB: 07120B0510AN000		 BOLT 1 Rp5.500
16 12911-22J00-000
SUB: 12911B22J00N000		 VALVE, INTAKE 1 Rp25.000
17 12912-22J00-000
SUB: 12912B22J00N000		 VALVE, EXHAUST 1 Rp40.500
18 12921-09J00-000
SUB: 12921B09J00N000		 SPRING, VALVE 2 Rp11.000
19 12931-09G00-000
SUB: 12931B09G00N000		 RETAINER, VALVE SPRING 2 Rp13.000
20 12932-09G00-000 COTTER, VALVE 4 Rp4.500
21 12933-09G00-000
SUB: 12933B09G00N000		 SEAT, VALVE SPRING 2 Rp9.000
22 09289-05L01-000
SUB: 09289B05L01N000		 SEAL (4.4X10.5X8.4) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
