< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLILNDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 STARTER CLUTCH FIG. 8 CAMSHAFT/VALVE FIG. 9 CAM CHAIN FIG. 10 THROTTLE BODY FIG. 11 AIR CLEANER FIG. 12 MUFFLER FIG. 13 OIL PUMP FIG. 14 FUEL PUMP FIG. 15 TRANSMISSION FIG. 16 GEAR SHIFTING FIG. 17 KICK STARTER

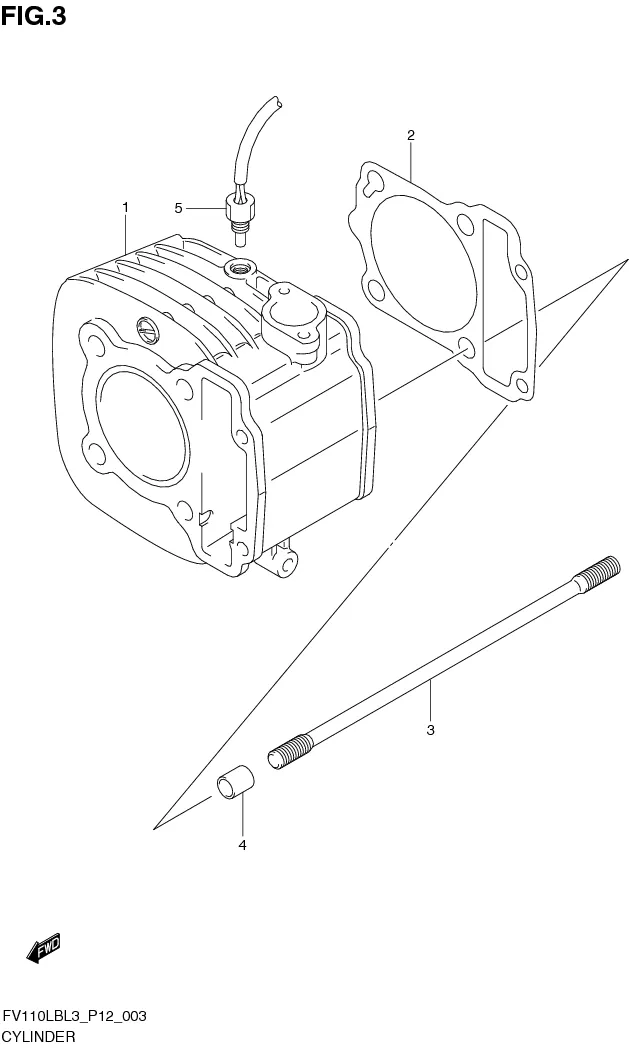

FIG. 3 CYLILNDER

FIG. 3 CYLILNDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-22J01-000 SUB: 11210B22J00N0F0	CYLINDER	1	Rp455.500
2	11241-22J00-000 SUB: 11241B22J00N000	GASKET, CYLINDER	1	Rp7.000
3	09108-08272-000 SUB: 09108B08272N000	STUD BOLT	4	Rp26.500
4	09206-10016-000 SUB: 09206B10016N000	PIN (8.2X10X13)	2	Rp3.500
5	13640-32G20-000 SUB: 13640B32G20N000	SENSOR, ENGINE TEMP	1	Rp156.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
