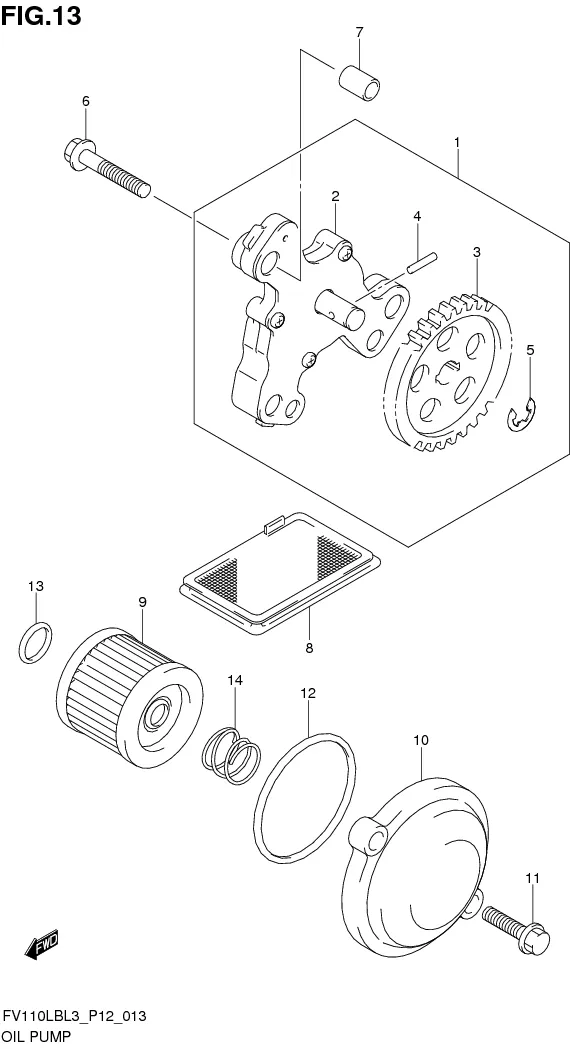

FIG. 13 OIL PUMP

FIG. 13 OIL PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	16000-22J00-000 SUB: 16000B22J00N000	PUMP SET, ENGINE OIL	1	Rp136.500
2	16400-22J00-000 SUB: 16400B22J00N000	.PUMP ASSY, ENGINE OIL	1	Rp132.000
3	16331-22J00-000 SUB: 16331B22J00N000	.GEAR, OIL PUMP DRIVEN (NT:29)	1	Rp12.500
4	09261-02008-000 SUB: 09261B02008N000	.PIN (2.5X11.8)	1	Rp10.500
5	08332-1106A-000 SUB: 08332B1106AN000	.E RING	1	Rp8.500
6	01547-0630A-000 SUB: 01547B0630AN000	BOLT	3	Rp6.500
7	09206-08008-000 SUB: 09206B08008N000	PIN (6.3X8X12)	2	Rp4.000
8	16520-09402-000 SUB: 16520B09402N000	STRAINER, ENGINE OIL	1	Rp18.000
9-1	16510-45H10-000 SUB: 16510B45H10N000	FILTER, ENGINE OIL	1	Rp10.000	INDONESIA NICHIRINDO
9-2	16510-45H20-000 SUB: 16510B45H20N000	FILTER, ENGINE OIL	1	Rp9.000	INDONESIA SELAMAT
10	16512-22J00-000 SUB: 16512B22J00N000	CAP, OIL FILTER	1	Rp14.000
11	01547-0620B-000 SUB: 01547B0620AN000	BOLT	2	Rp6.500
12	09280-54001-000 SUB: 09280B54001N000	O RING (D:2.4,ID:52.6)	1	Rp3.000
13	09280-13010-000 SUB: 09280B13010N000	O RING (D:1.9,ID:12.5)	1	Rp3.000
14	16519-09J00-000 SUB: 16519B09J00N000	SPRING	1	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
