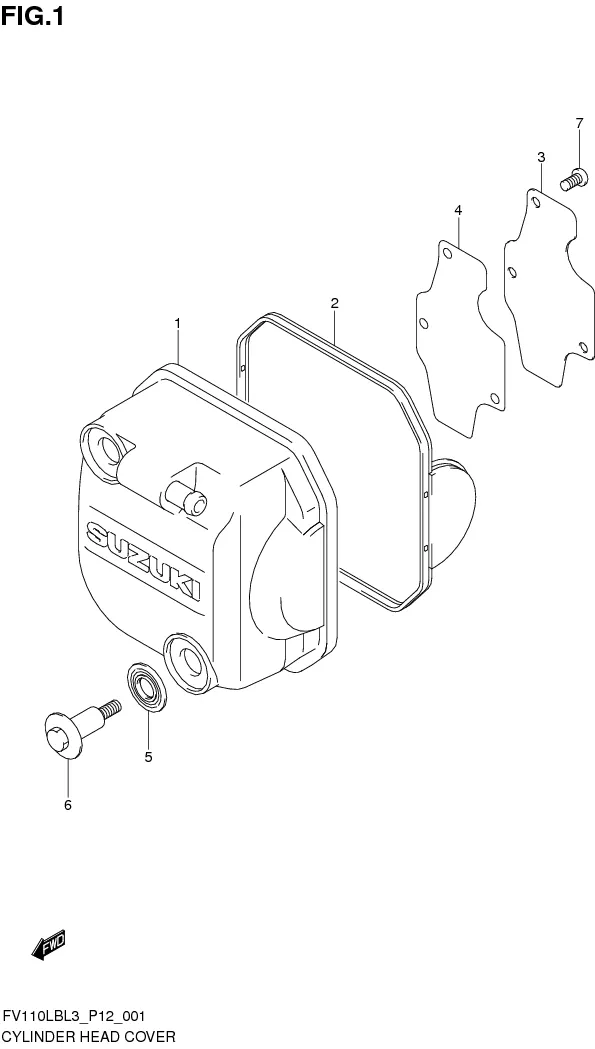

FIG. 1 CYLINDER HEAD COVER

FIG. 1 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-22J01-000
SUB: 11170B22J00N000		 COVER, CYLINDER HEAD 1 Rp96.000
2 11173-22J00-000
SUB: 11173B22J00N000		 GASKET, CYLINDER HEAD COVER 1 Rp31.500
3 11176-22J00-000
SUB: 11176B22J00N000		 PLATE, BREATHER 1 Rp8.500
4 11177-22J00-000
SUB: 11177B22J00N000		 GASKET, BREATHER PLATE 1 Rp6.500
5 11191-27E70-000
SUB: 11191B27E70N000		 WASHER, HEAD COVER BOLT 2 Rp6.500
6 09119-06120-000
SUB: 09119B06120N000		 BOLT (L21.7) 2 Rp11.000
7 DISCONTINUE
SUB: 02112B0510AN000		 SCREW 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
