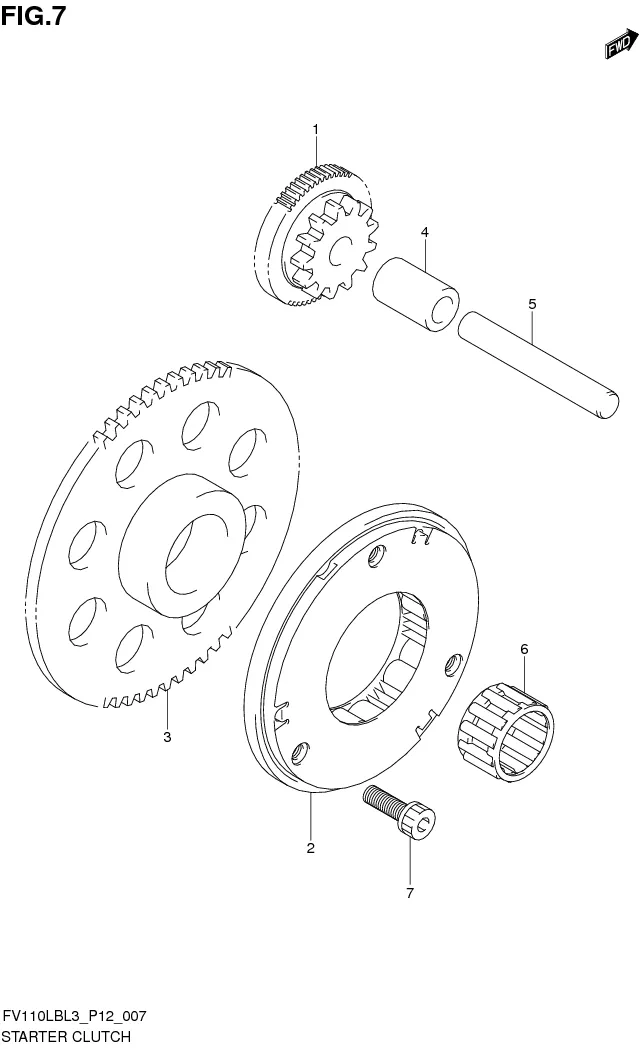

FIG. 7 STARTER CLUTCH

FIG. 7 STARTER CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12611-22J00-000 SUB: 12611B22J00N000	GEAR, STARTER IDLE (NT:13/57)	1	Rp73.500
2	12614-22J30-000 SUB: 12614B22J00N000	CLUTCH, STARTER ONE WAY	1	Rp286.500
3	12622-22J20-000 SUB: 12620B22J10N000	GEAR, STARTER CLUTCH (NT:55)	1	Rp104.500
4	09180-09025-000 SUB: 09180B09025N000	SPACER	1	Rp38.500
5	DISCONTINUE SUB: 09202B09007N000	PIN	1	-
6	09263-20108-000 SUB: 09263B20108N000	BEARING	1	Rp40.500
7	07130-0616A-000 SUB: 07130B0616AN000	BOLT	3	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
