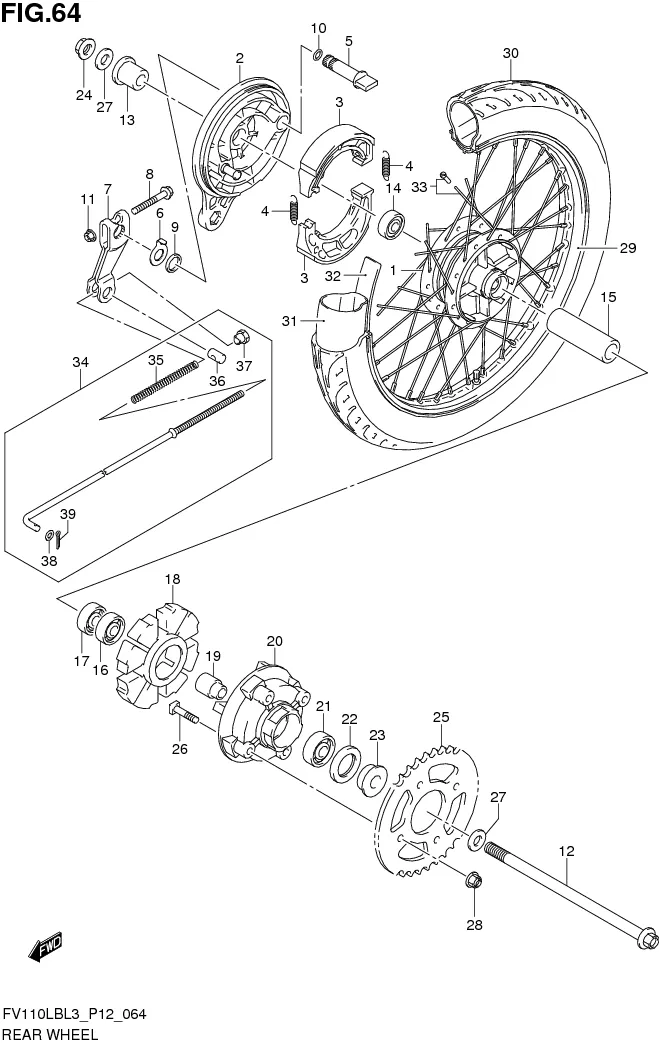

FIG. 64 REAR WHEEL

FIG. 64 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64110B09G01N000 HUB, REAR WHEEL 1 -
2 64210-16H20-13L
SUB: 64210B16H20N13L		 PANEL, REAR BRAKE ANCHOR (SILVER) 1 Rp209.000
3 54400-23820-000
SUB: 54400B23820N000		 SHOE, SET REAR BRAKE 1 Rp61.000
4 09443-07025-000
SUB: 09443B07025N000		 SPRING 2 Rp3.500
5 64441-21D00-000
SUB: 64441B21D00N000		 CAM, REAR BRAKE 1 Rp34.500
6 DISCONTINUE
SUB: 54492B35400N000		 PLATE, BRAKE LINING INDICATOR 1 -
7 64451-20G00-000
SUB: 64451B20G00N000		 LEVER, REAR BRAKE CAM 1 Rp9.500
8 DISCONTINUE
SUB: 09103B06045N000		 BOLT (6X32) 1 -
9 09160-14054-000
SUB: 09160B14054N000		 WASHER (14.5X22X1) 1 Rp12.500
10 09280-14011-000
SUB: 09280B14011N000		 O RING (D:2.5,ID:13.8) 1 Rp7.500
11 08316-1006A-000
SUB: 08316B1006BN000		 NUT 1 Rp2.000
12 64711-16H00-000
SUB: 64711-31C20L000		 AXLE, REAR 1 Rp24.500
13 64741-07H00-000
SUB: 64741B07H00N000		 SPACER, REAR AXLE RH 1 Rp8.500
14 08140-63017-000
SUB: 08140B63017N000		 BEARING RH 1 Rp32.000 RH
15 09180-12143-000
SUB: 09180-12143L000		 SPACER (12.5X19X48) 1 Rp9.000
16 08140-62017-000
SUB: 08140B62017N000		 BEARING LH 1 Rp25.000 LH
17 08113-62017-000
SUB: 08113-62017L000		 BEARING LH 1 Rp23.500 LH
18 64651-25G10-000
SUB: 64651B25G10N000		 ABSORBER, REAR WHEEL HUB SHOCK 1 Rp38.500
19 64733-43000-000
SUB: 64733B43000N000		 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
20 64611-22J00-000
SUB: 64611B22J00N000		 DRUM, REAR SPROCKET 1 Rp87.000
21 08113-62037L000 BEARING 1 Rp34.000
22 09285-25L01-000
SUB: 09285B25L01N000		 OIL SEAL (24X40X6) 1 Rp7.000
23 64721-20G00-000
SUB: 64721B20G00N000		 SPACER, REAR SPROCKET DRUM 1 Rp23.500
24 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
25 64511-22J00-000
SUB: 64511B22J00N000		 SPROCKET, REAR (NT:37) 1 Rp112.000
26 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500
27 09160-12085-000
SUB: 09160B12085N000		 WASHER (12.5X26X2.3) 2 Rp6.500
28 08319-3108A-000
SUB: 08319B3108AN000		 NUT 4 Rp4.000
29 65311-16H40-000
SUB: 65311B16H40N000		 RIM, REAR WHEEL (17X1.60) 1 Rp348.500
30 65110-38D20-000
SUB: 65110B38D20N000		 TIRE, REAR (80/90-17M/C 44P) 1 Rp297.000
31 DISCONTINUE
SUB: 65200B45H70N000		 TUBE ASSY, INNER 1 -
32 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, INNER TUBE 1 -
33 DISCONTINUE
SUB: 65320B45HB0N000		 SPOKE SET, REAR WHEEL 1 -
34 43300-22J00-000
SUB: 43300B22J00N000		 ROD ASSY, REAR BRAKE 1 Rp36.000
35 09440-09004-000
SUB: 09440-09004L000		 .SPRING 1 Rp12.500
36 09209-11002-000
SUB: 09209B11002N000		 .PIN (11X18) 1 Rp7.500
37 09150-06010-000
SUB: 09150B06010N000		 .NUT 1 Rp4.500
38 08322-0105A-000
SUB: 08322B0105AN000		 .WASHER 1 Rp3.000
39 04111-2020A-000
SUB: 04111B2020AN000		 .COTTER PIN 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
