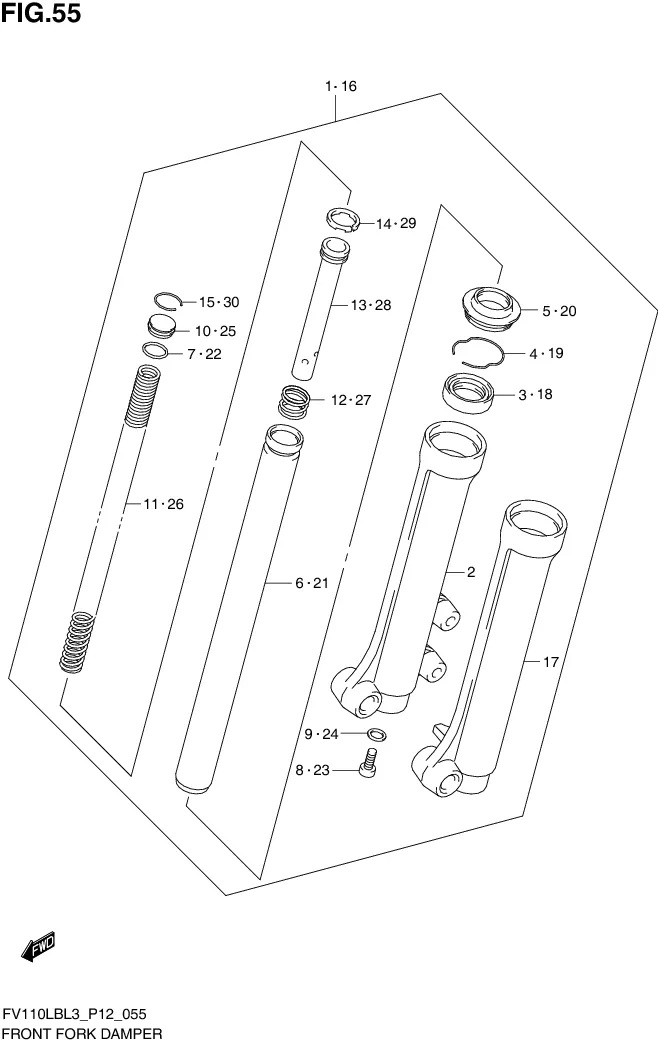

FIG. 55 FRONT FORK DAMPER

FIG. 55 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-22J00-000
SUB: 51103B22J00N000		 DAMPER ASSY, FRONT FORK RH 1 Rp576.500
2 51130-22J00-000
SUB: 51130B22J00N000		 .TUBE, OUTER RH 1 Rp238.000
3 51153-23F00-000
SUB: 51153-23F00L000		 ..OIL SEAL 1 Rp27.000
4 51156-45H00-000
SUB: 51156B45H00N000		 ..RING, SNAP 1 Rp6.000
5 51173-23F00-000
SUB: 51173-23F00L000		 ..SEAL, DUST 1 Rp41.500
6 51110-22J00-000
SUB: 51110B22J00N000		 .TUBE, INNER 1 Rp211.000
7 51181-37B00-000
SUB: 51181B37B00N000		 .O RING 1 Rp5.000
8 DISCONTINUE
SUB: 51147B45H00N000		 .BOLT 1 -
9 51148-22J00-000
SUB: 51148B22J00N000		 .GASKET 1 Rp4.500
10 DISCONTINUE
SUB: 51351B22J00N000		 .CAP 1 -
11 51171-22J00-000
SUB: 51171B22J00N000		 .SPRING 1 Rp31.500
12 DISCONTINUE
SUB: 51177B22J00N000		 .SPRING, REBOUND 1 -
13 DISCONTINUE
SUB: 51146B22J00N000		 .CYLINDER 1 -
14 DISCONTINUE
SUB: 51196B22J00N000		 .RING 1 -
15 51156-13H40-000
SUB: 51156B13H40N000		 .SNAP RING 1 Rp3.500
16 51104-22J00-000
SUB: 51104B22J00N000		 DAMPER ASSY, FRONT FORK LH 1 Rp576.500
17 51140-22J00-000
SUB: 51140B22J00N000		 .TUBE, OUTER LH 1 Rp238.000
18 51153-23F00-000
SUB: 51153-23F00L000		 ..OIL SEAL 1 Rp27.000
19 51156-45H00-000
SUB: 51156B45H00N000		 ..SNAP RING 1 Rp6.000
20 51173-23F00-000
SUB: 51173-23F00L000		 ..SEAL, DUST 1 Rp41.500
21 51110-22J00-000
SUB: 51110B22J00N000		 .TUBE, INNER 1 Rp211.000
22 51181-37B00-000
SUB: 51181B37B00N000		 .O RING 1 Rp5.000
23 DISCONTINUE
SUB: 51147B45H00N000		 .BOLT 1 -
24 51148-22J00-000
SUB: 51148B22J00N000		 .GASKET 1 Rp4.500
25 DISCONTINUE
SUB: 51351B22J00N000		 .CAP 1 -
26 51171-22J00-000
SUB: 51171B22J00N000		 .SPRING 1 Rp31.500
27 DISCONTINUE
SUB: 51177B22J00N000		 .SPRING, REBOUND 1 -
28 DISCONTINUE
SUB: 51146B22J00N000		 .CYLINDER 1 -
29 DISCONTINUE
SUB: 51196B22J00N000		 .RING 1 -
30 51156-13H40-000
SUB: 51156B13H40N000		 .SNAP RING 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
