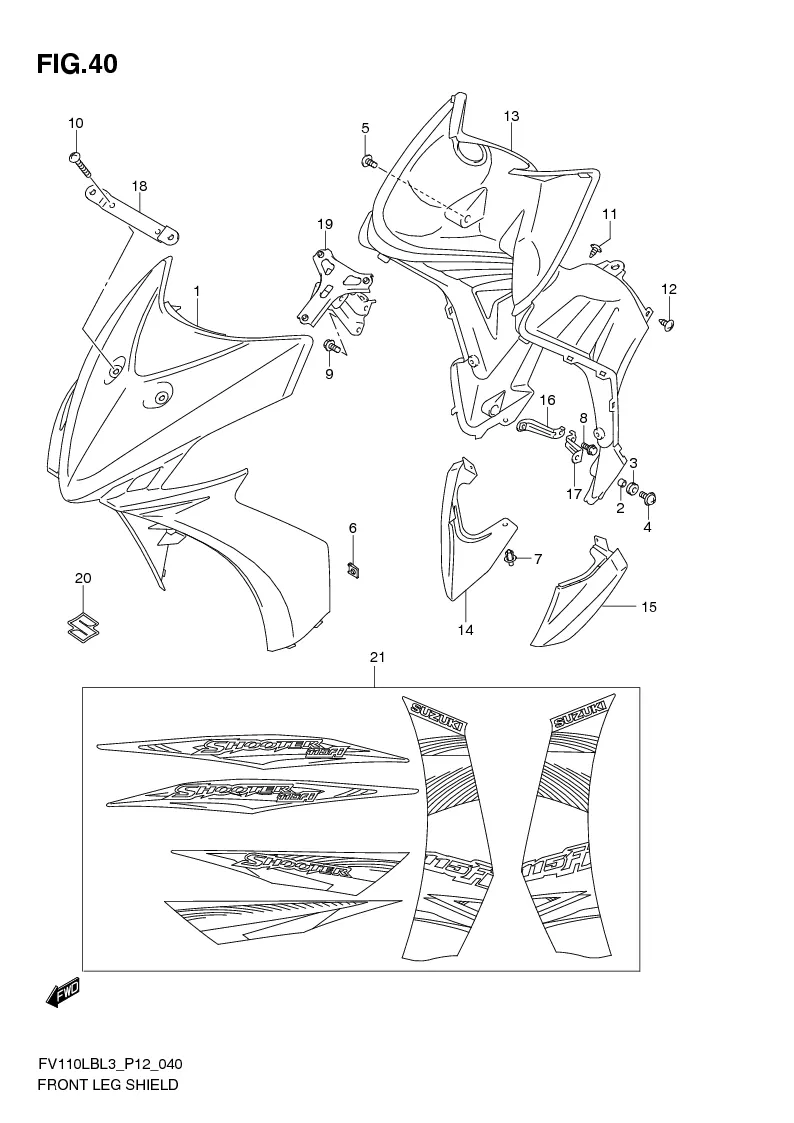

FIG. 40 FRONT LEG SHIELD

FIG. 40 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-22J10-YUH
SUB: 48111B22J10NYUH		 SHIELD, LEG FRONT (WHITE) FOR AM7 1 Rp312.000 FOR AM7
1-3 48111-22J10-YUJ
SUB: 48111B22J10NYUJ		 SHIELD, LEG FRONT (BLUE) FOR AM6 1 Rp312.000 FOR AM6
1-4 48111-22J10-YVU
SUB: 48111B22J10NYVU		 SHIELD, LEG FRONT (BLACK) FOR ANM 1 Rp312.000 FOR ANM
1-1 48111-22J10-YTB
SUB: 48111B22J10NYTB		 SHIELD, LEG FRONT (RED) FOR AM5 1 Rp406.000 FOR AM5
2 09180-06256-000
SUB: 48212B16H00N000		 SPACER, LEG SHIELD BRACE 2 Rp3.000
3 48278-16H00-000 CUSHION, LEG BRACE 2 Rp38.000
4 09136-06158-000
SUB: 09136B06158N000		 SCREW (6X16) 2 Rp7.000
5 09136-06158-000
SUB: 09136B06158N000		 SCREW (6X16) 2 Rp7.000
6 09148-04019-000
SUB: 09148B04034N000		 NUT 4 Rp6.500
7 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP (BLACK) 2 Rp3.500
8 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 2 Rp3.000
9 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
10 02142-0635A-000
SUB: 02142B0635AN000		 SCREW 2 Rp6.500
11 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
12 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
13 48131-22J20-291
SUB: 48131B22J00N291		 SHIELD, LEG CENTER (BLACK) 1 Rp83.500
14 48137-22J10-291
SUB: 48137B22J00N291		 SHIELD, LEG LOWER RH (BLACK) 1 Rp88.000
15 48138-22J10-291
SUB: 48138B22J00N291		 SHIELD, LEG LOWER LH (BLACK) 1 Rp88.000
16 48140-22J00-000
SUB: 48140B22J00N000		 BRACKET, LEG SHIELD RH 1 Rp6.000
17 48150-22J00-000
SUB: 48150B22J00N000		 BRACKET, LEG SHIELD LH 1 Rp6.000
18 DISCONTINUE
SUB: 48190B22J00N000		 PLATE, FRONT LICENSE 1 -
19 51860-22J00-000
SUB: 51860B22J00N000		 BRACE, LEG SHIELD 1 Rp45.000
20 68641-22J11-000
SUB: 68211B25GA0N000		 EMBLEM, "S" 1 Rp24.000
21-1 68000-22J00-YTB
SUB: 68000B22J00NYTB		 STRIPPING SET SHOOTER RED/BLACK FOR YTB 1 Rp95.000 FOR YTB
21-2 68000-22J00-AFR
SUB: 68000B22J00NAFR		 STRIPPING SET SHOOTER WHITE/GREEN FOR AFR 1 Rp95.000 FOR AFR
21-3 68000-22J00-YUJ
SUB: 68000B22J00NYUJ		 STRIPPING SET SHOOTER BLUE/BLACK FOR YUJ 1 Rp95.000 FOR YUJ
21-4 68000-22J00-YVU
SUB: 68000B22J00NYVU		 STRIPPING SET SHOOTER BLACK/BLACK FOR YVU 1 Rp95.000 FOR YVU

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
