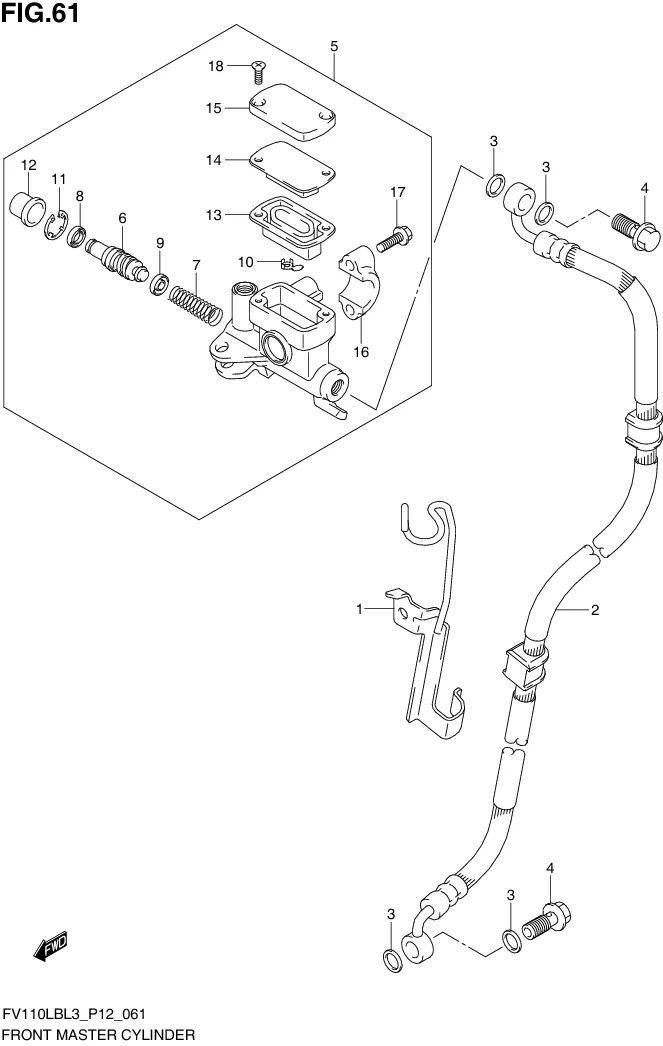

FIG. 61 FRONT MASTER CYLINDER

FIG. 61 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59260-22J00-000
SUB: 59260B22J00N000		 CLAMP, FR BRAKE HOSE 1 Rp15.500
2 59480-22J00-000
SUB: 59480B22J00N000		 HOSE, FRONT BRAKE 1 Rp106.000
3 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
4 59492-22J00-000
SUB: 59492B22J00N000		 BOLT, BRAKE FLUID 2 Rp19.500
5 59600-22J00-000
SUB: 59600B22J00N000		 CYLINDER ASSY, FRONT MASTER 1 Rp961.500
6 59611-36500-000
SUB: 59611B36500N000		 .PISTON 1 Rp75.500
7 59621-36500-000
SUB: 59621B36500N000		 .SPRING 1 Rp5.500
8 59662-21D00-000
SUB: 59662B21D00N000		 .CUP, SECONDARY 1 Rp34.500
9 59663-21D00-000
SUB: 59663B21D00N000		 .CUP, PRIMARY 1 Rp42.000
10 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
11 59665-36500-000
SUB: 59665B36500N000		 .CIRCLIP 1 Rp5.500
12 59666-44300-000
SUB: 59666B44300N000		 .BOOT 1 Rp16.000
13 69667-01H00-000
SUB: 69667B01H00N000		 .DIAPHRAGM 1 Rp20.000
14 69668-01H00-000
SUB: 69668B01H00N000		 .PLATE, DIAPHRAGM 1 Rp4.500
15 59669-22J00-000
SUB: 59669B22J00N000		 .CAP 1 Rp14.000
16 59671-27C00-000
SUB: 59671B27C00N000		 .HOLDER 1 Rp18.000
17 59675-06F10-000
SUB: 59675B06F10N000		 .BOLT 2 Rp4.500
18 69689-49300-000
SUB: 69689-49300L000		 .SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
