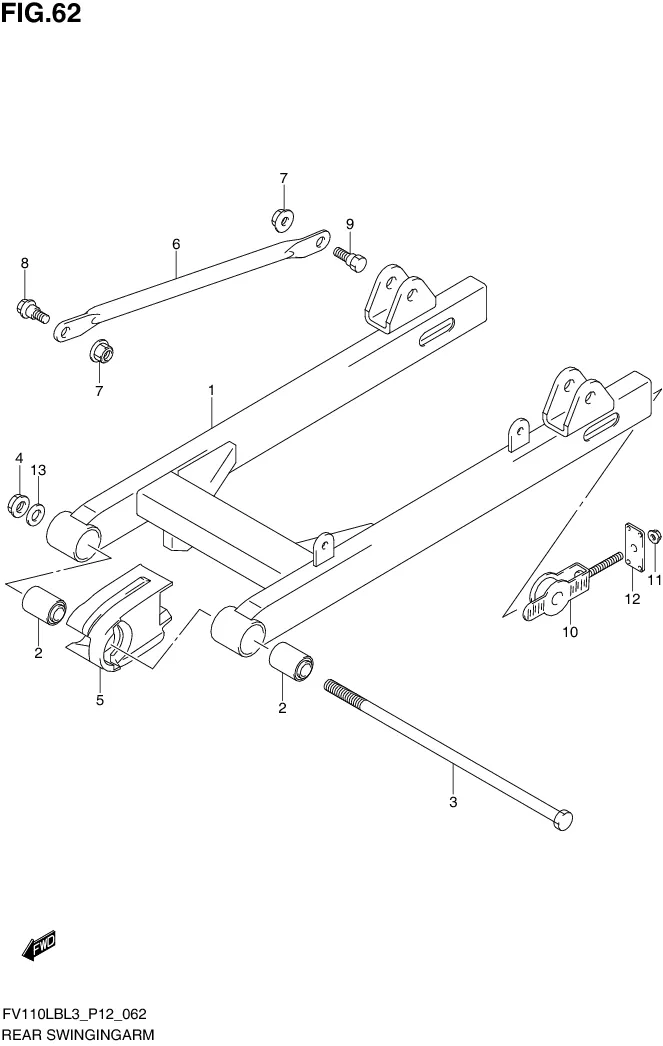

FIG. 62 REAR SWINGINGARM

FIG. 62 REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-22J10-291
SUB: 61100B22J10N291		 SWINGINGARM, REAR (BLACK) 1 Rp436.000
2 61230-22J00-000
SUB: 61230B22J00N000		 BUSHING 2 Rp34.500
3 61211-22J10-000
SUB: 61211B22J00N000		 SHAFT, REAR SWINGINGARM 1 Rp29.500
4 08319-3112B-000
SUB: 08319B3112BN000		 NUT 1 Rp9.000
5 61273-22J00-000
SUB: 61273B22J00N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp20.500
6 64310-45H00-000
SUB: 64310B45H00N000		 TORQUELINK, REAR 1 Rp29.000
7 08319-3108A-000
SUB: 08319B3108AN000		 NUT 2 Rp4.000
8 64321-45H00-000
SUB: 64321B45H00N000		 BOLT, FRONT 1 Rp4.000
9 64331-45H00-000
SUB: 64331B45H00N000		 BOLT, REAR 1 Rp4.000
10 61410-20G30-000
SUB: 61410B20G30N000		 ADJUSTER, CHAIN 2 Rp34.500
11 08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
12 61421-16H00-000
SUB: 61421B20G00N000		 GUIDE, CHAIN ADJUSTER 2 Rp29.000
13 DISCONTINUE
SUB: 09160B12118N000		 WASHER (12X27X2) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
