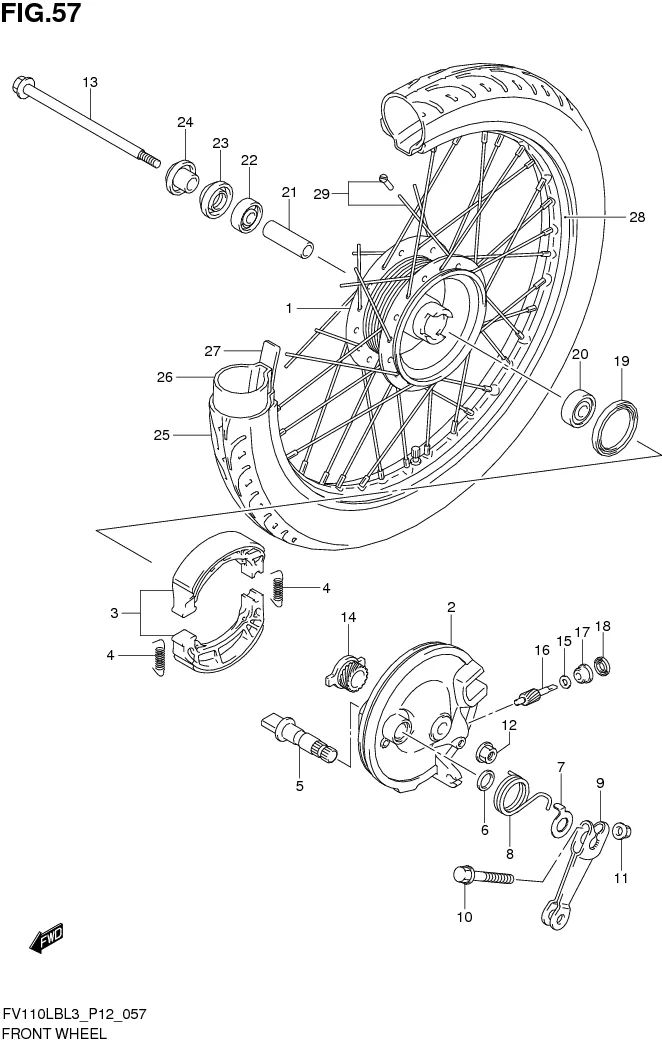

FIG. 57 FRONT WHEEL

FIG. 57 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54110-35401-13L
SUB: 54110-35401L000		 HUB, FRONT WHEEL 1 Rp147.000
2 54210-45H20-000
SUB: 54210B45H20N000		 PANEL, FRONT BRAKE ANCHOR 1 Rp155.500
3 54400-23820-000
SUB: 54400B23820N000		 SHOE, FRONT BRAKE 1 Rp61.000
4 09443-07025-000
SUB: 09443B07025N000		 SPRING 2 Rp3.500
5 DISCONTINUE
SUB: 54441B23F00N000		 CAM, FRONT BRAKE 1 -
6 09280-14011-000
SUB: 09280B14011N000		 O RING (D:2.5,ID:13.8) 1 Rp7.500
7 DISCONTINUE
SUB: 54492B35400N000		 PLATE, BRAKE LINING INDICATOR 1 -
8 DISCONTINUE
SUB: 09448B30009NA05		 SPRING 1 -
9 54451-45H00-000
SUB: 54451B45H00N000		 LEVER, FRONT BRAKE CAM 1 Rp17.500
10 DISCONTINUE
SUB: 09103B06045N000		 BOLT (6X32) 1 -
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
12 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
13 54711-13H00-000
SUB: 54711B13H00N000		 AXLE, FRONT 1 Rp13.000
14 54611-45H20-000
SUB: 54611B45H20N000		 GEAR, SPEEDOMETER (NT:22) 1 Rp12.500
15 09160-06065-000
SUB: 09160B06065N000		 WASHER (6.2X9X0.3) 1 Rp3.000
16 54621-45H50-000
SUB: 54621B45H50N000		 PINION, SPEEDOMETER (NT:9) 1 Rp88.000
17 54632-41H00-000
SUB: 54632B41H00N000		 BUSH, SPEEDOMETER PINION 1 Rp4.000
18 54651-41H00-000
SUB: 54651B41H00N000		 SEAL, SPEEDOMETER PINION OIL 1 Rp7.000
19 54267-22J00-000
SUB: 54267B22J00N000		 OIL SEAL 1 Rp12.500
20 08143-63007-000
SUB: 08143-63007L000		 BEARING LH 1 Rp29.500 LH
21 54731-09G00-000
SUB: 54731B09G00N000		 SPACER, BEARING 1 Rp10.500
22 08113-62007-000
SUB: 08113-62007L000		 BEARING RH 1 Rp24.000 RH
23 09284-15001-000
SUB: 09284-15001L000		 OIL SEAL (15X31X5) 1 Rp4.500
24 54740-26101-000
SUB: 54740-26101L000		 SPACER, FRONT AXLE RH 1 Rp106.000
25 55110-38D20-000
SUB: 55110B38D20N000		 TIRE, FRONT (70/90-17M/C 38P) 1 Rp205.000
26 DISCONTINUE
SUB: 55200B38D20N000		 TUBE ASSY, WHEEL INNER 1 -
27 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, WHEEL INNER TUBE 1 -
28 DISCONTINUE
SUB: 55311B09G30N000		 RIM, FRONT WHEEL (17X1.40) 1 -
29 DISCONTINUE
SUB: 55320B45HB0N000		 SPOKE ASSY, FRONT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
