  5. FIG. 56 STEERING STEM

Shooter

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 31 FRAMEFIG. 32 FRAMEFIG. 33 STANDFIG. 34 STANDFIG. 35 FOOTRESTFIG. 36 FOOTRESTFIG. 37 FUEL TANKFIG. 38 FRAME COVERFIG. 39 FRAME COVERFIG. 40 FRONT LEG SHIELDFIG. 41 FRONT LEG SHIELDFIG. 42 FRONT FENDERFIG. 43 FRONT FENDERFIG. 44 HANDLEBARFIG. 45 HANDLEBARFIG. 46 HANDLE COVERFIG. 47 HANDLE COVERFIG. 48 HANDLE LEVERFIG. 49 HANDLE LEVERFIG. 50 REAR FENDERFIG. 51 LUGGAGE BOXFIG. 52 LABELFIG. 53 SEATFIG. 54 FRONT FORK DAMPERFIG. 55 FRONT FORK DAMPERFIG. 56 STEERING STEMFIG. 57 FRONT WHEELFIG. 58 FRONT WHEELFIG. 59 FRONT WHEELFIG. 60 FRONT CALIPERFIG. 61 FRONT MASTER CYLINDERFIG. 62 REAR SWINGINGARMFIG. 63 CHAIN CASEFIG. 64 REAR WHEEL

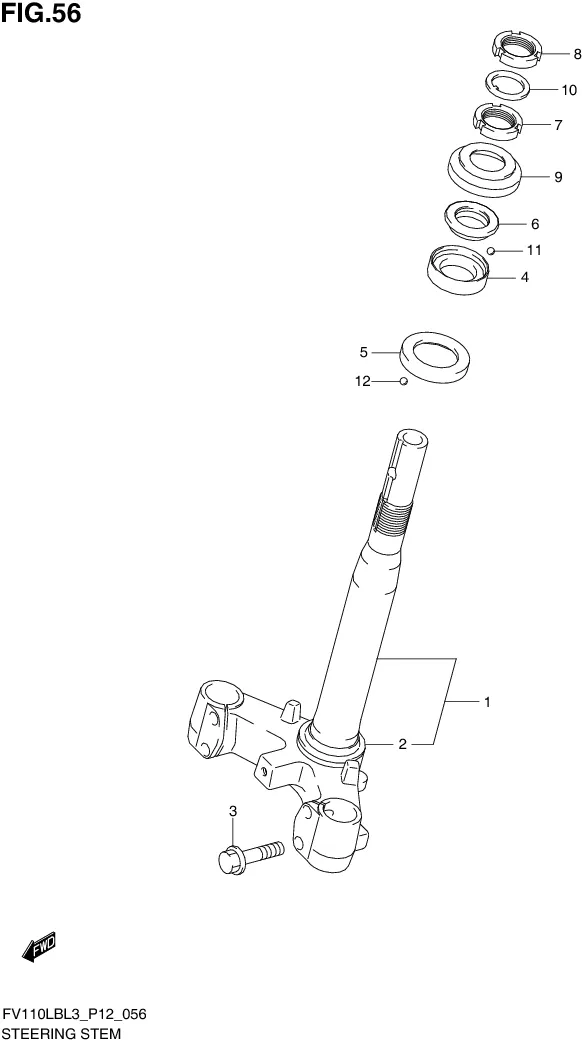

FIG. 56 STEERING STEM

FIG. 56 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-22J00-000
SUB: 51410B22J00N000		 BRACKET, UNDER 1 Rp674.500
2 51622-41H00-000
SUB: 51622B41H00N000		 .RACE 1 Rp56.500
3 DISCONTINUE
SUB: 51451B22J00N000		 BOLT 4 -
4 51611-41H01-000
SUB: 51611B41H00N000		 RACE, STEERING INNER UPPER 1 Rp20.500
5 51612-41H01-000
SUB: 51612B41H00N000		 RACE, STEERING INNER LOWER 1 Rp20.500
6 51621-41H00-000
SUB: 51621B41H00N000		 RACE, STEERING OUTER UPPER 1 Rp31.000
7 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 1 Rp20.000
8 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM LOCK 1 Rp20.000
9 51643-06001-000
SUB: 51643-06001L000		 SEAL, STEERING DUST UPPER 1 Rp3.000
10 09166-24001-000
SUB: 09166B24001N000		 WASHER (24.5X34X2.3) 1 Rp4.500
11 06111-06004-000
SUB: 06111B06003N000		 BALL UPPER 23 Rp1.000 UPPER
12 06111-06004-000
SUB: 06111B06003N000		 BALL LOWER 28 Rp1.000 LOWER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
