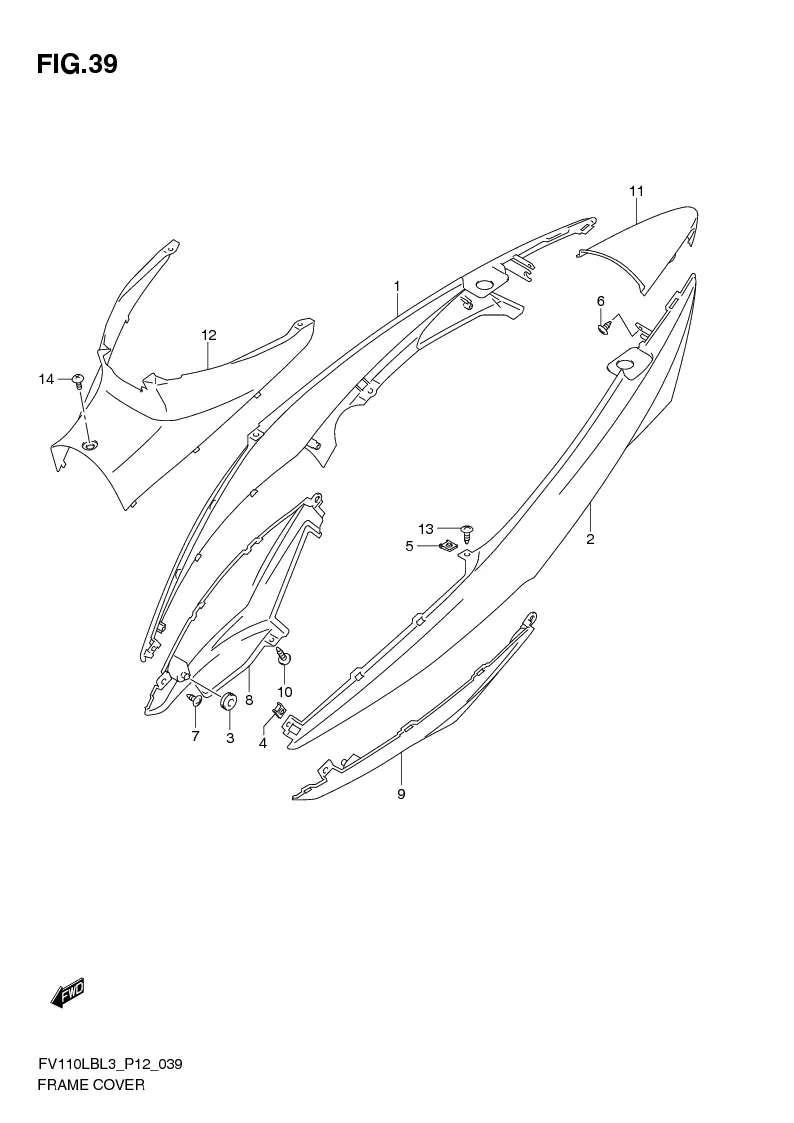

FIG. 39 FRAME COVER

FIG. 39 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-22J00-YTB
SUB: 47111B22J00NYTB		 COVER, FRAME RH (RED) 1 Rp182.500 FOR YTB
1-3 47111-22J00-YUJ
SUB: 47111B22J00NYUJ		 COVER, FRAME RH (BLUE) 1 Rp182.500 FOR YUJ
1-4 47111-22J00-YVU
SUB: 47111B22J00NYVU		 COVER, FRAME RH (BLACK) 1 Rp182.500 FOR YVU
1-1 47111-22J00-PZ5
SUB: 47111B22J00NPZ5		 COVER, FRAME RH (GREEN) 1 Rp182.500 FOR AFR
2-1 47211-22J00-PZ5
SUB: 47211B22J00NPZ5		 COVER, FRAME LH (GREEN) 1 Rp182.500 FOR AFR
2-2 47211-22J00-YTB
SUB: 47211B22J00NYTB		 COVER, FRAME LH (RED) 1 Rp182.500 FOR YTB
2-3 47211-22J00-YUJ
SUB: 47211B22J00NYUJ		 COVER, FRAME LH (BLUE) 1 Rp182.500 FOR YUJ
2-4 47211-22J00-YVU
SUB: 47211B22J00NYVU		 COVER, FRAME LH (BLACK) 1 Rp182.500 FOR YVU
3 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
4 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
5 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
6 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 2 Rp4.000
7 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 4 Rp4.000
8 47511-22J10-291
SUB: 47511B22J00N291		 COVER, FRAME UNDER RH 1 Rp40.000
9 47611-22J10-291
SUB: 47611B22J00N291		 COVER, FRAME UNDER LH 1 Rp40.000
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
11 47711-22J10-291
SUB: 47711B22J00N291		 COVER, FRAME REAR 1 Rp38.500
12 47411-22J10-291
SUB: 47411B22J00N291		 COVER, FRAME FRONT 1 Rp37.000
13 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
14 48218-10J00-000
SUB: 48218B10J00N000		 SCREW, LEG CENTER 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
