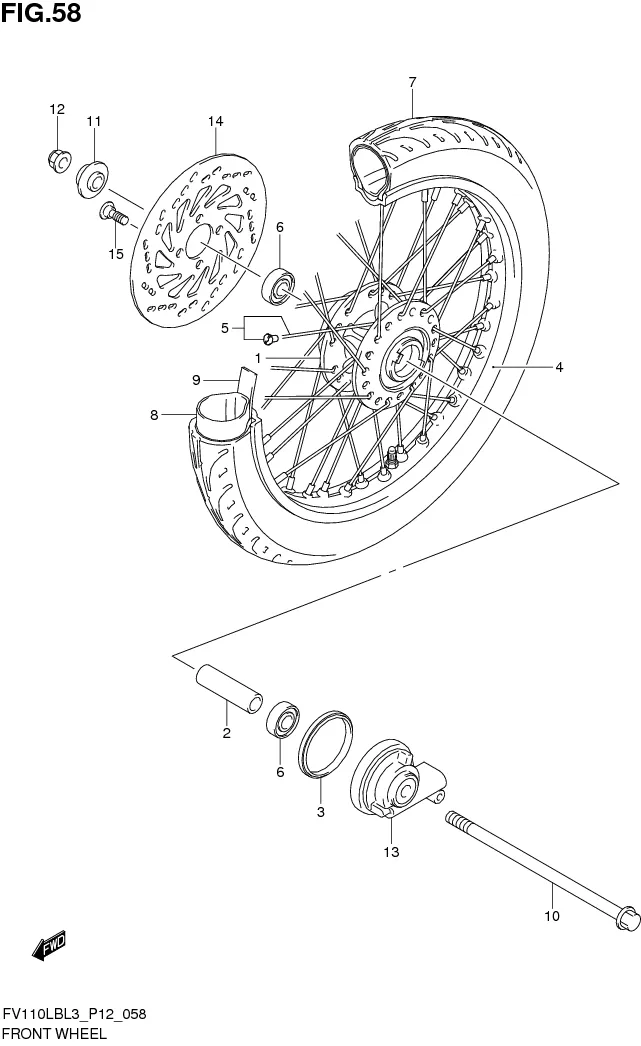

FIG. 58 FRONT WHEEL

FIG. 58 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54111B41H00N000		 HUB, FRONT 1 -
2 54731-41H00-000
SUB: 54731B41H00N000		 SPACER, FRONT HUB BEARING 1 Rp16.500
3 54742-41H00-000
SUB: 54742B41H00N000		 SEAL, FRONT HUB 1 Rp9.500
4 55311-09G40-000
SUB: 55311B09G40N000		 RIM, FRONT WHEEL (17X1.40) 1 Rp351.000
5 55320-46100-000
SUB: 55320-46100L000		 SPOKE SET, FRONT WHEEL 1 Rp44.500
6 08123-63007-000
SUB: 08123-63007L000		 BEARING 2 Rp32.500
7 55110-38D20-000
SUB: 55110B38D20N000		 TIRE, FRONT (70/90-17M/C 38P) 1 Rp205.000
8 DISCONTINUE
SUB: 55200B38D20N000		 TUBE ASSY, WHEEL INNER 1 -
9 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, WHEEL INNER TUBE 1 -
10 54711-13H00-000
SUB: 54711B13H00N000		 AXLE, FRONT 1 Rp13.000
11 54750-46100-000
SUB: 54750-46100L000		 SPACER, FRONT AXLE RH 1 Rp12.500
12 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
13 54600-45H10-000
SUB: 54600B45H10N000		 BOX ASSY, SPEEDOMETER GEAR 1 Rp165.500
14 59211-09G60-000
SUB: 59211B09G60N000		 DISC, FRONT BRAKE 1 Rp188.000
15 59218-09G10-000
SUB: 59218B09G10N000		 BOLT, FRONT BRAKE DISC 4 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
