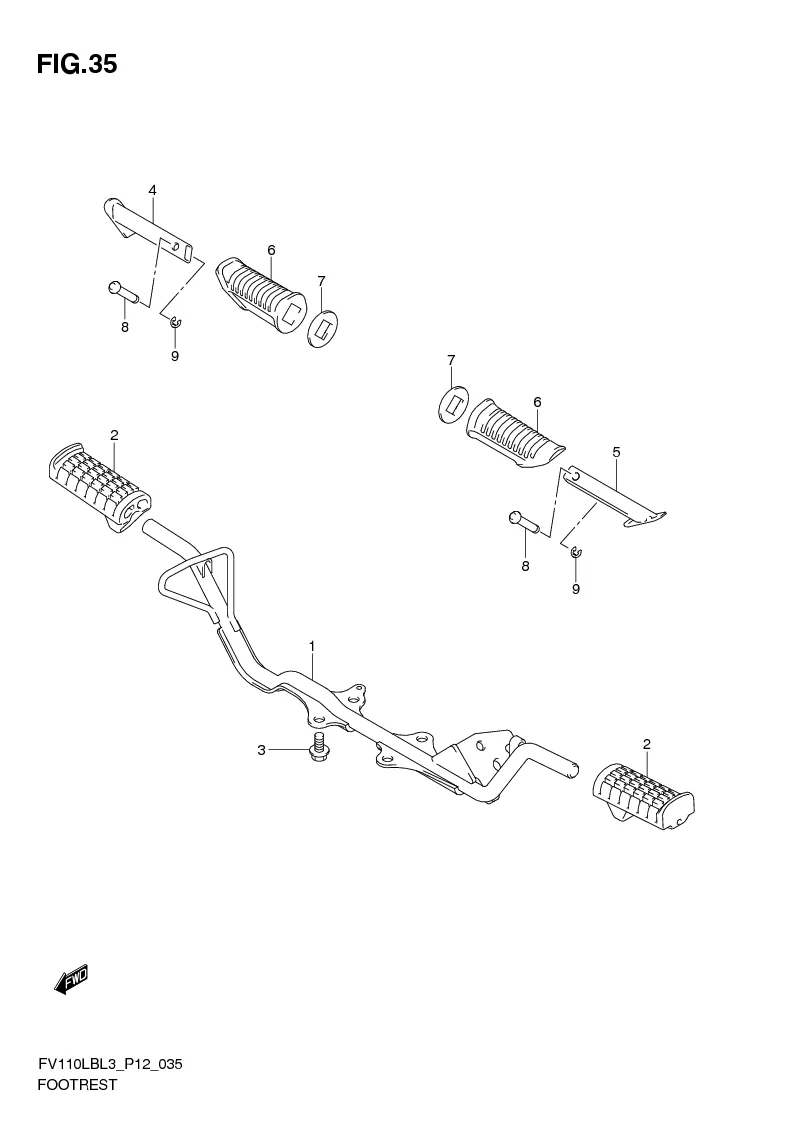

FIG. 35 FOOTREST

FIG. 35 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-22J00-000
SUB: 43510B22J00N000		 BAR, FRONT FOOTREST 1 Rp133.500
2 43551-22J00-000
SUB: 43551B22J00N000		 RUBBER, FRONT FOOTREST 2 Rp13.500
3 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610-34A00L000		 BAR, PILLION FOOTREST RH 1 Rp15.000
5 43710-34A00-000
SUB: 43710-34A00L000		 BAR, PILLION FOOTREST LH 1 Rp15.000
6 43612-22J00-000
SUB: 43612B22J00N000		 RUBBER, PILLION FOOTREST 2 Rp12.500
7 43631-09G00-000
SUB: 43631B09G00N000		 WASHER, PILLION FOOTREST RUBBER 2 Rp7.500
8 09208-06005-000
SUB: 09208B06005N000		 PIN 2 Rp5.500
9 08332-1104A-000
SUB: 08332B1104AN000		 E RING 2 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
