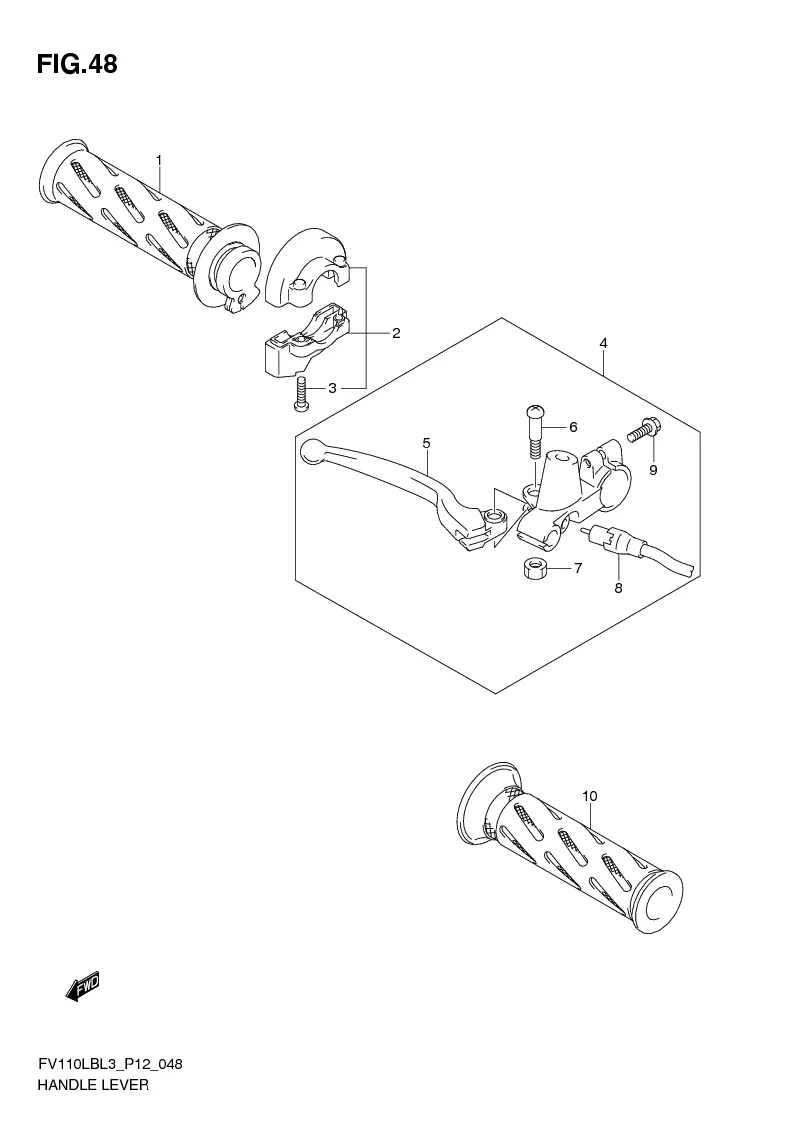

FIG. 48 HANDLE LEVER

FIG. 48 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09GD0-000
SUB: 57110B09GC0N000
GRIP, THROTTLE 1 Rp24.000
2 57100-09G11-000
SUB: 57100B09G11N000
CASE ASSY, THROTTLE 1 Rp19.500
3 DISCONTINUE
SUB: 02112-0520A-000
.SCREW 2 -
4 DISCONTINUE
SUB: 57300B41H40N000
LEVER ASSY, FRONT BRAKE 1 -
5 57421-09G00-000
SUB: 57421B09G00N000
.LEVER, BRAKE 1 Rp99.500
6 57431-09G20-000
SUB: 57431B09G20N000
.BOLT, BRAKE LEVER PIVOT 1 Rp7.000
7 08319-2106A-000
SUB: 08319B2106AN000
.NUT 1 Rp5.000
8 57470-10J40-000
SUB: 57470B10J10N000
.SWITCH ASSY, BRAKE 1 Rp46.500
9 DISCONTINUE
SUB: 01550B0625AN000
.BOLT 1 -
10 57211-22D01-000
SUB: 57211B22D01N291
GRIP, LH (BLACK) 1 Rp38.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
