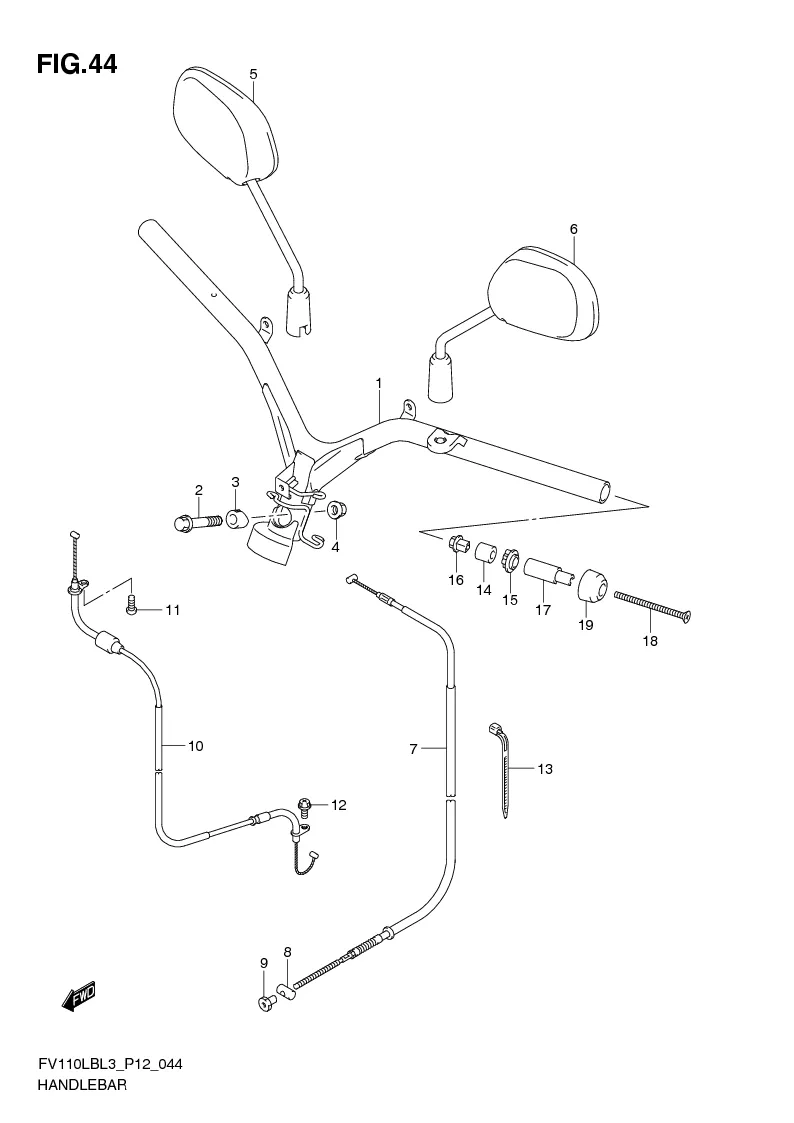

FIG. 44 HANDLEBAR

FIG. 44 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-22J00-000
SUB: 56110B22J00N000		 HANDLEBAR 1 Rp157.500
2 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
3 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLEBAR 1 Rp8.000
4 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
5 56500-09J22-000
SUB: 56500B09J20N000		 MIRROR ASSY, REAR VIEW RH 1 Rp82.000
6 56600-09J22-000
SUB: 56600B09J20N000		 MIRROR ASSY, REAR VIEW LH 1 Rp82.000
7 58110-22J00-000
SUB: 58110B22J00N000		 CABLE, FRONT BRAKE 1 Rp66.000
8 DISCONTINUE
SUB: 09209-10001-000		 PIN (10X19) 1 -
9 09150-05101-000 NUT 1 Rp18.000
10 58300-22J00-000
SUB: 58300B22J00N000		 CABLE ASSY, THROTTLE 1 Rp50.000
11 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500
12 02162-0510A-000
SUB: 02162B0510AN000		 SCREW 1 Rp3.000
13 DISCONTINUE
SUB: 09407B25401N000		 CLAMP (L:235) 1 -
14 56272-10G01-000
SUB: 56272B10G00N000		 EXPANDER, HANDLE BALANCER 2 Rp5.000
15 56272-22J00-000
SUB: 56272B22J00N000		 EXPANDER, HANDLE BALANCER 2 Rp7.000
16 56273-10G10-000
SUB: 56273B10G10N000		 NUT, ANDLE BALANCER 2 Rp20.500
17 56276-22J00-000
SUB: 56276B22J00N000		 BALANCER, HANDLEBAR INNER 2 Rp10.500
18 56277-22J00-000
SUB: 56277B22J00N000		 SCREW, HANDLE BALANCER 2 Rp6.000
19 56278-22J00-000
SUB: 56278B22J00N000		 BALANCER, HANDLEBAR 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
