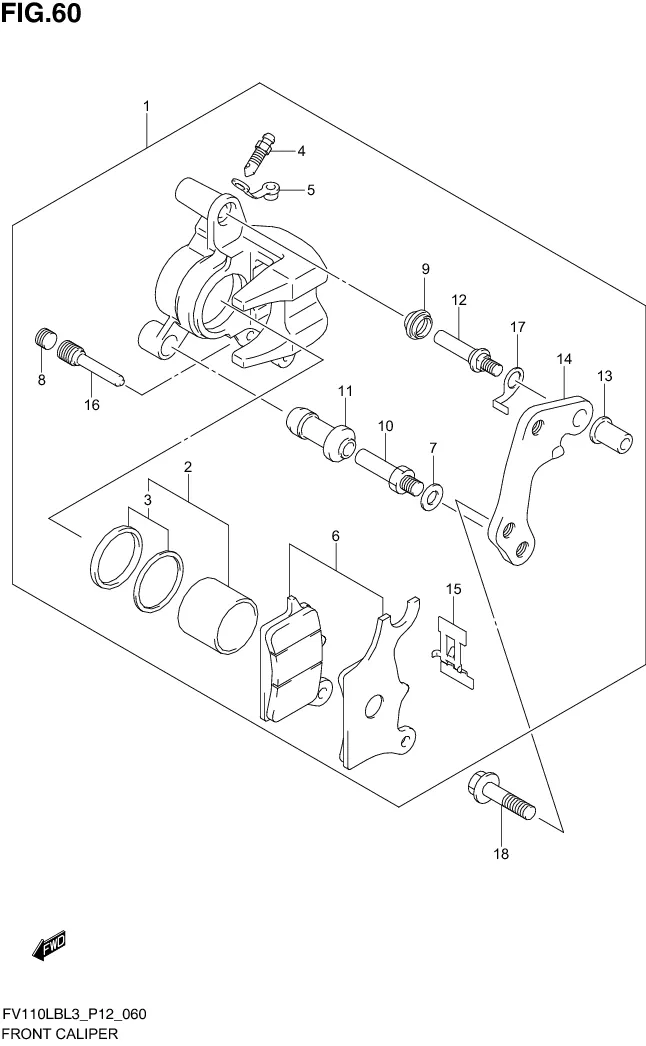

FIG. 60 FRONT CALIPER

FIG. 60 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-45H10-000
SUB: 59100B45H10N000		 CALIPER ASSY, FRONT 1 Rp877.000
2 59100-41840-000
SUB: 59100B41840N000		 .PISTON SET 1 Rp150.500
3 59100-38860-000
SUB: 59100B38860N000		 ..SEAL SET, PISTON 1 Rp37.500
4 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
5 59122-01A00-000
SUB: 59122-01A00L000		 .CAP, BLEEDER 1 Rp3.000
6 59100-41830-000
SUB: 59100B41830N000		 .PAD SET 1 Rp117.500
7 59314-13A00-000
SUB: 59314-13A00L000		 .WASHER, WAVE 1 Rp3.000
8 59146-21E10-000
SUB: 59146B21E10N000		 .PLUG, PIN 1 Rp5.500
9 59303-14500-000
SUB: 59303-14500L000		 .BOOT 1 Rp12.500
10 59382-13A00-000
SUB: 59382-13A00L000		 .PIN 1 Rp13.500
11 59386-13A00-000
SUB: 59386-13A00L000		 .BOOT 1 Rp14.000
12 59387-41HA0-000
SUB: 59387B41HA0N000		 .PIN 1 Rp15.000
13 59388-41HA0-000
SUB: 59388B41HA0N000		 .NUT 1 Rp13.000
14 DISCONTINUE
SUB: 59351B45H10N000		 .BRACKET 1 -
15 59115-41HA0-000
SUB: 59115B41HA0N000		 .SPRING, PAD 1 Rp28.500
16 59345-41HA0-000
SUB: 59345B41HA0N000		 .PIN, HANGER 1 Rp29.500
17 59133-41HA0-000
SUB: 59133B41HA0N000		 .RETAINER, BRACKET 1 Rp7.500
18 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
