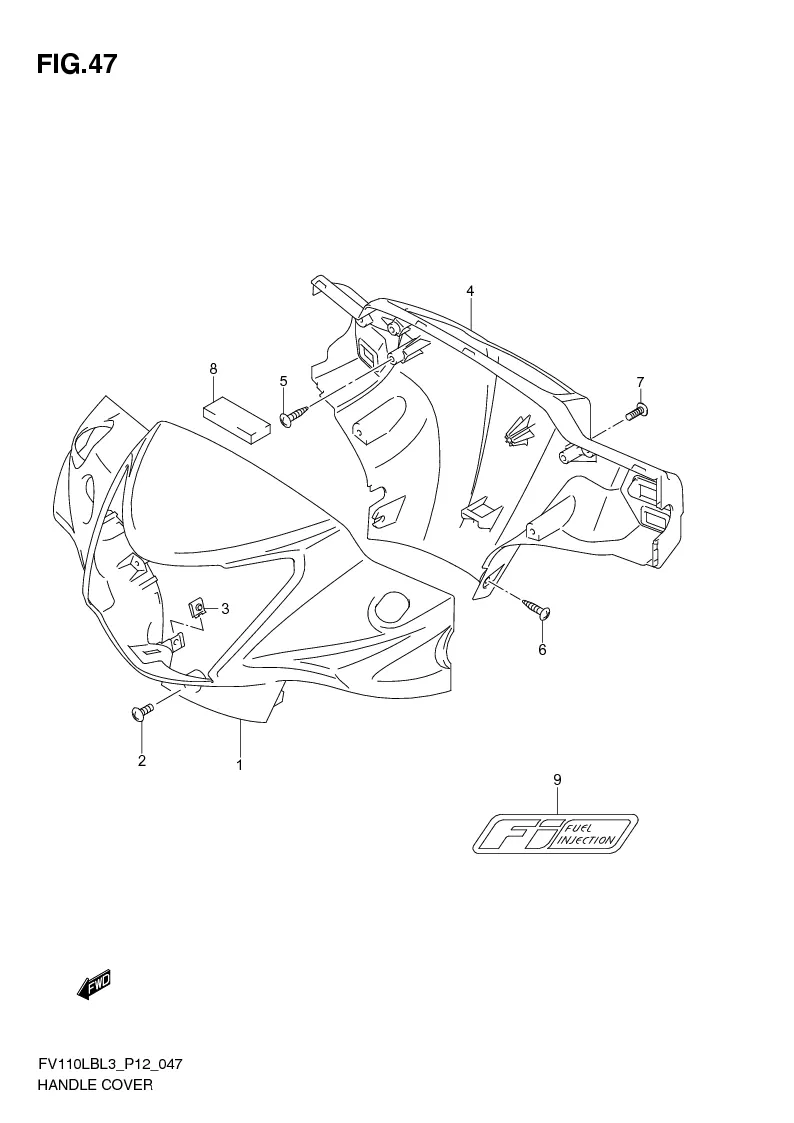

FIG. 47 HANDLE COVER

FIG. 47 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 56311-22J10-YTB
SUB: 56311B22J10NYTB		 COVER, HANDLE FRONT (RED) FOR YTB 1 Rp212.500 FOR YTB
1-2 56311-22J10-YUH
SUB: 56311B22J10NYUH		 COVER, HANDLE FRONT (WHITE) FOR AFR 1 Rp168.500 FOR AFR
1-3 56311-22J10-YUJ
SUB: 56311B22J10NYUJ		 COVER, HANDLE FRONT (BLUE) FOR YUJ 1 Rp164.000 FOR YUJ
1-4 56311-22J10-YVU
SUB: 56311B22J10NYVU		 COVER, HANDLE FRONT (BLACK) FOR YVU 1 Rp161.000 FOR YVU
2 02142-0512A-000
SUB: 02142B0512AN000		 SCREW 1 Rp3.500
3 09148-04019-000
SUB: 09148B04034N000		 NUT 4 Rp6.500
4 56321-22J20-000
SUB: 56321B22J00N000		 COVER, HANDLE REAR 1 Rp35.000
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
6 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
7 56316-45H00-000
SUB: 56316B45H00N000		 SCREW, HANDLE COVER FR & RR 2 Rp6.500
8 33652-35400-000
SUB: 33652B35400N000		 CUSHION, HANDLE COVER FRONT 1 Rp7.000
9 68281-22J01-ANN
SUB: 68281B22J00NANN		 EMBLEM, FI (SILVER/GRAY) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
