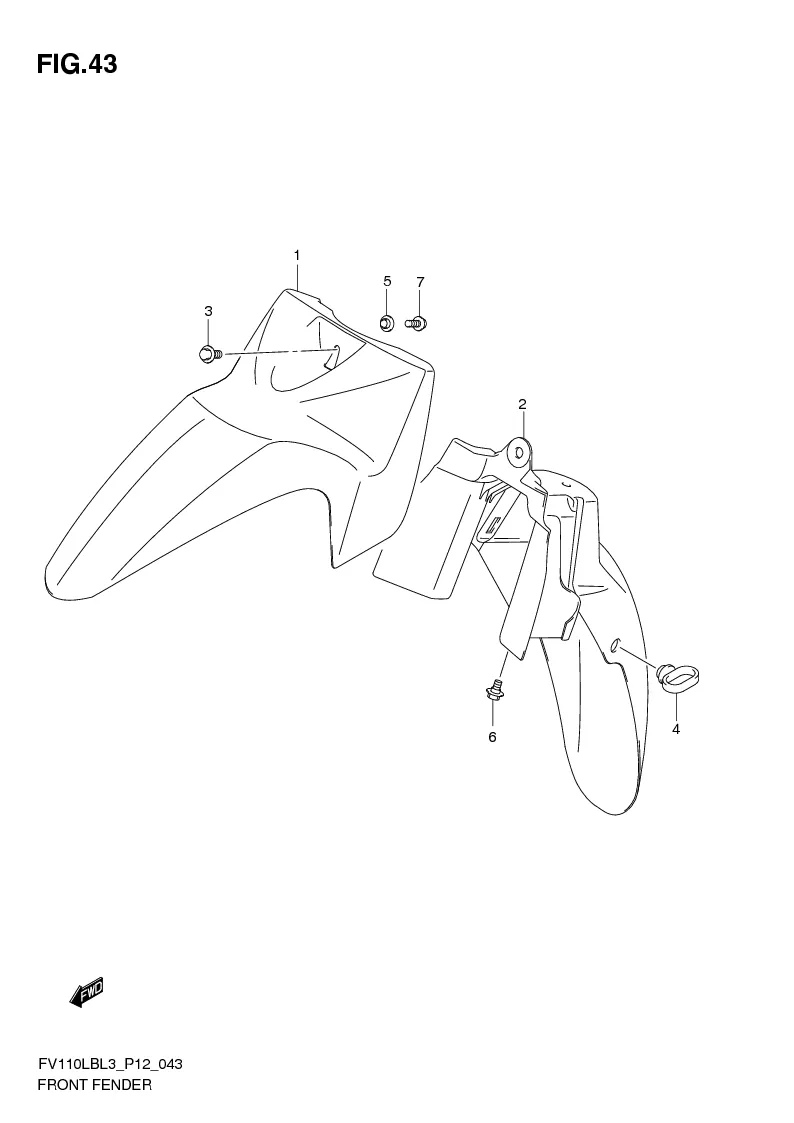

FIG. 43 FRONT FENDER

FIG. 43 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 53111-22J00-PZ5
SUB: 53111B22J00NPZ5		 FENDER, FRONT NO.1 (GREEN) FOR AFR 1 Rp173.000 FOR AFR
1-2 53111-22J00-YUH
SUB: 53111B22J00NYUH		 FENDER, FRONT NO.1 (WHITE) FOR YTB,YUJ 1 Rp170.500 FOR YTB,YUJ
1-3 53111-22J00-YVU
SUB: 53111B22J00NYVU		 FENDER, FRONT NO.1 (BLACK) FOR YVU 1 Rp159.500 FOR YVU
2 53211-22J10-000
SUB: 53211B22J00N000		 FENDER, FRONT NO.2 1 Rp41.500
3 09111-06110-000
SUB: 09111B06110N000		 BOLT (6X17.8) 1 Rp8.000
4 58621-47E00-000
SUB: 58621B47E00N000		 GUIDE, FRONT BRAKE CABLE 1 Rp4.000
5 09169-06071-000
SUB: 09169B06071N000		 WASHER 2 Rp7.500
6 09111-06106-000
SUB: 09111B06106N000		 BOLT (6X12) 1 Rp7.500
7 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
