Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

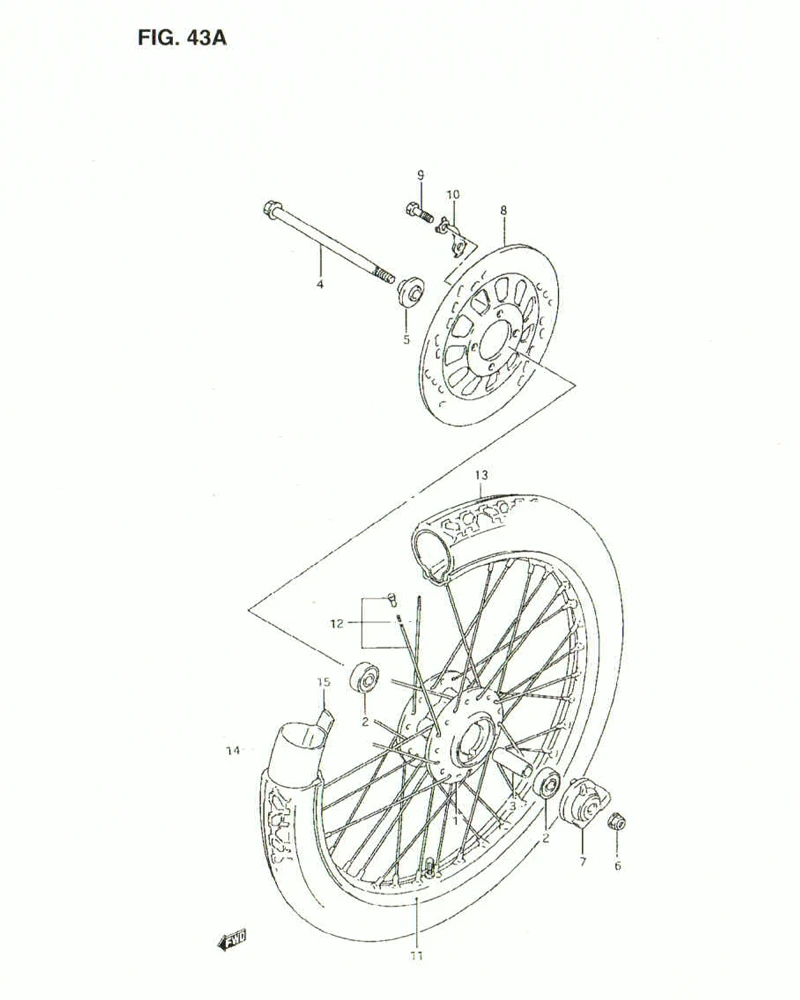

FIG. 43 FRONT WHEEL

FIG. 43 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 54110-35401-13L
SUB: 54110-35401L000		 HUB, front wheel 1 Rp147.000
1-1 54110-35401-13L
SUB: 54110-35401-000		 HUB, front wheel 1 Rp147.000
2-2 DISCONTINUE
SUB: 54210-35402L000		 PANEL, front hub 1 -
2-1 DISCONTINUE
SUB: 54210-35402-000		 PANEL, front hub 1 -
3 54410-35450-000
SUB: 54410-35020L000		 SHOE, brake 2 Rp60.000
4 09443-07025-000 SPRING 2 Rp3.500
5 54441-35401-000 SHAFT, brake cam 1 Rp98.000
6 09280-14003-000 O RING 1 Rp3.000
7 DISCONTINUE
SUB: 54492-35400-000		 PLATE, brake lining 1 -
8 09160-14054-000
SUB: 09160-14003-000		 WASHER 1 Rp12.500
9 09448-30009-000 SPRING 1 Rp4.500
10 54451-35400-000 LEVER, brake cam 1 Rp8.500
11 DISCONTINUE
SUB: 09103-06045-000		 BOLT 1 -
12 08316-1006A-000
SUB: 08316-10063-000		 NUT 1 Rp2.000
13 08319-31108-000
SUB: 08319-31107-000		 NUT 1 Rp4.500
14-1 54711-13601-000 AXLE, front 1 Rp23.500
14-2 54711-13601-000
SUB: 54711-13601L000		 AXLE, front 1 Rp23.500
15 54611-23202-000 GEAR, speedometer driven, NT:26 1 Rp185.000
16 54661-03000-000 DRIVER, speedometer gear 1 Rp30.000
17 09160-16005-000 WASHER, 5. 1X9X0. 4 1 Rp10.500
18 08331-31159-000
SUB: 08331-31156-000		 CIRCLIP 1 Rp14.000
19 DISCONTINUE
SUB: 09160-05001-000		 WASHER, 5. 1X9X0. 4 2 -
20 54621-23201-000 GEAR, speedometer driven, NT:10 1 Rp125.000
21 54632-02201-000 BUSHING, driven gear outer 1 Rp68.500
22 DISCONTINUE
SUB: 09285-43001-000		 OIL SEAL 1 -
23 08143-63007-000 BEARING, LH 1 Rp29.500
24 DISCONTINUE
SUB: 09180-10147-000		 SPACER, bearing 1 -
25 08113-62007-000 BEARING, RH 1 Rp24.000
26 09284-15001-000 OIL SEAL 1 Rp4.500
27 54740-26101-000 SPACER, axle RH 1 Rp106.000
28 55110-30D21L000 TIRE, front, 2.50-17-4PR (IRC) 1 -
29 DISCONTINUE
SUB: 55200-03600-000		 TUBE ASSY, wheel inner 1 -
30 55261-01010-000 PROTECTOR, inner tube 1 -
31 55311-09G40-000
SUB: 55311-31CA0L000		 RIM, wheel 1. 40X17 1 Rp351.000
32-1 DISCONTINUE
SUB: 55320-01012-000		 SPOKE ASSY, front 1 -
32-2 DISCONTINUE
SUB: 55320-01012L000		 SPOKE ASSY, front 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
