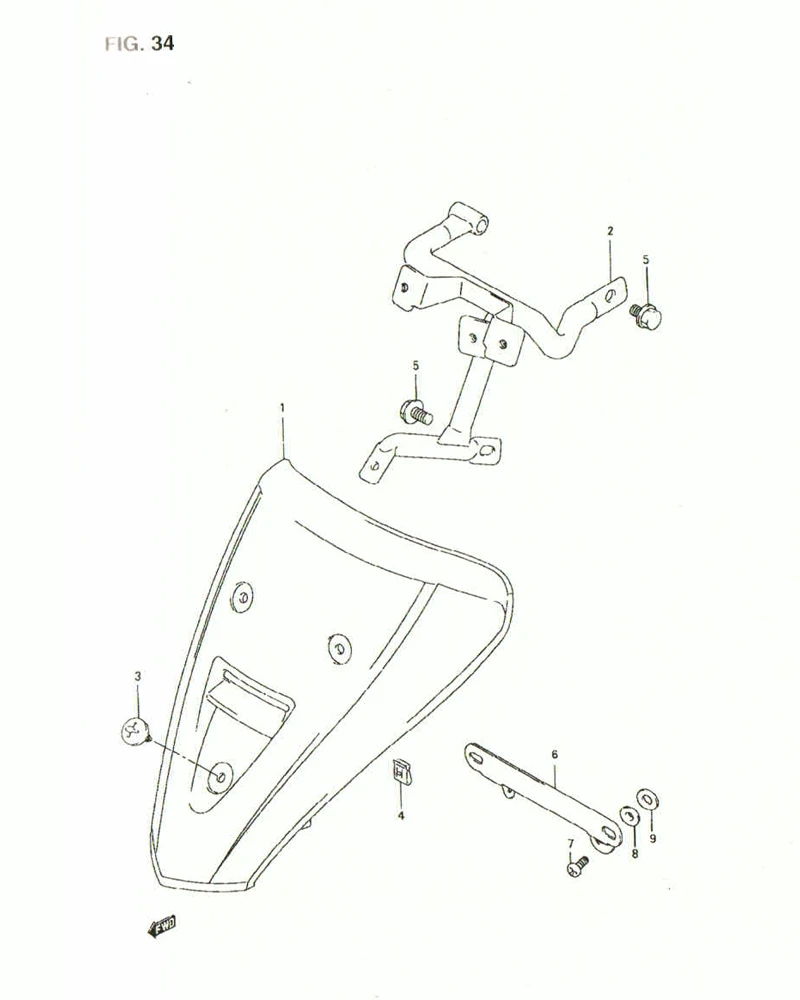

FIG. 34 FRONT FORK COVER

FIG. 34 FRONT FORK COVER
No No. Part Description Qty Price Per Pcs Remarks
1 51871-31CA0L000 COVER, frame head 1 -
2 DISCONTINUE
SUB: 51860-31CA0L000		 BRACE, frame head cover 1 -
3 09139-06083-000 SCREW, cover 3 Rp6.500
4 09148-04024-000 NUT, cover 2 Rp14.000
5 01550-0616A-000
SUB: 01550-06163-000		 BOLT, brace 2 Rp3.500
6-1 48193-31CA0-000 PLATE, front licnese 1 -
6-2 DISCONTINUE
SUB: 48193-31CA0L000		 PLATE, front licnese 1 -
7 02142-0620A-000
SUB: 02142-06203-000		 SCREW 2 Rp5.500
8 48194-31CA0-000 CUSHION 2 -
9 09169-06041-000 WASHER 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
