Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

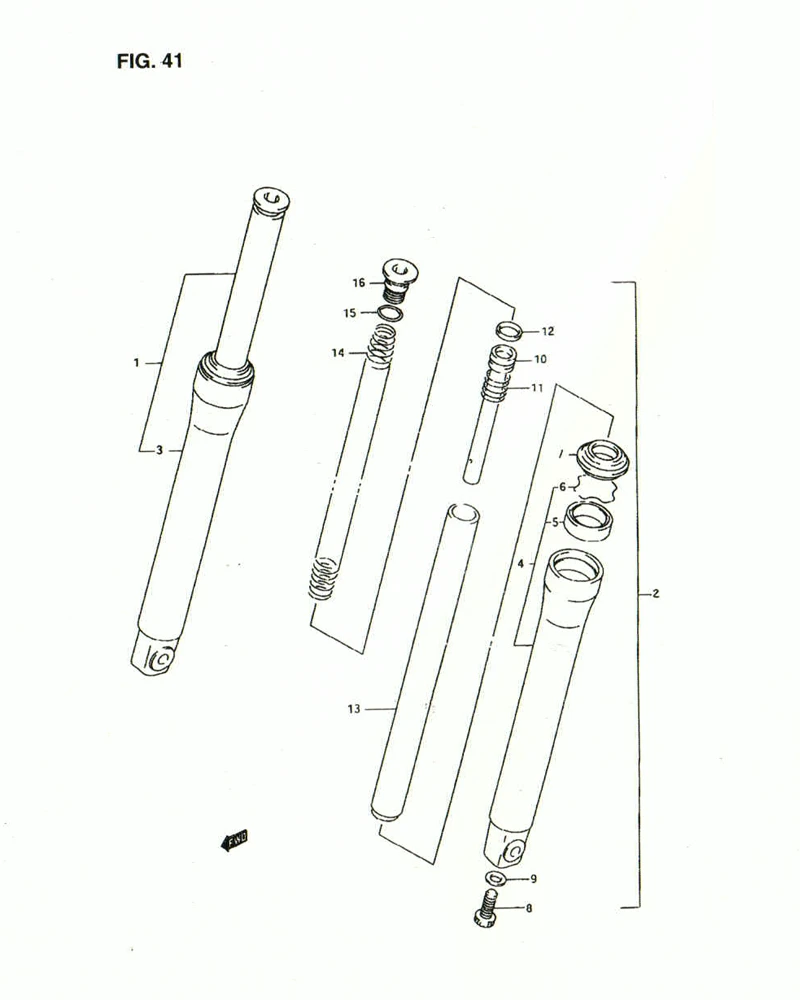

FIG. 41 FRONT DAMPER

FIG. 41 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51103-31CB0L000		 DAMPER ASSY, front fork RH 1 -
2 DISCONTINUE
SUB: 51104-31CB0L000		 DAMPER ASSY, front fork LH 1 -
3 DISCONTINUE
SUB: 51130-31CB0L000		 .TUBE, outer RH 1 -
4 DISCONTINUE
SUB: 51140-31CB0L000		 .TUBE, outer LH 1 -
5 51153-39140-000 ..OIL SEAL 2 Rp21.500
6 51156-39140-000 ..RING, snap 2 Rp35.000
7 51173-21D00-000 .DUST SEAL 2 Rp132.500
8 51147-16510-000 .OBLT, cyliner 2 Rp10.500
9 51148-41310-000 .GASKET 2 Rp8.500
10 51146-31CB0-000
SUB: 51146-31CB0L000		 .CYLINDER 2 Rp85.000
11 51177B35400N000
SUB: 51177-35400-000		 .SPRING 2 Rp7.000
12 51196-39140-000 .RING 2 Rp7.500
13-1 51110-21D10-000 .TUBE, inner 2 Rp272.000
13-2 51110-21D10-000
SUB: 51110-21D10L000		 .TUBE, inner 1 Rp272.000
14 51171-31CB0-000
SUB: 51171-31CB0L000		 .SPRING 2 Rp35.000
15 51181-37B00-000
SUB: 09280-17002-000		 .O RING 2 Rp5.000
16 51351-21D10-000 .CAP 2 Rp269.500
17 DISCONTINUE
SUB: 51100-31CB0L000		 FRONT FORK ASSY 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
