Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

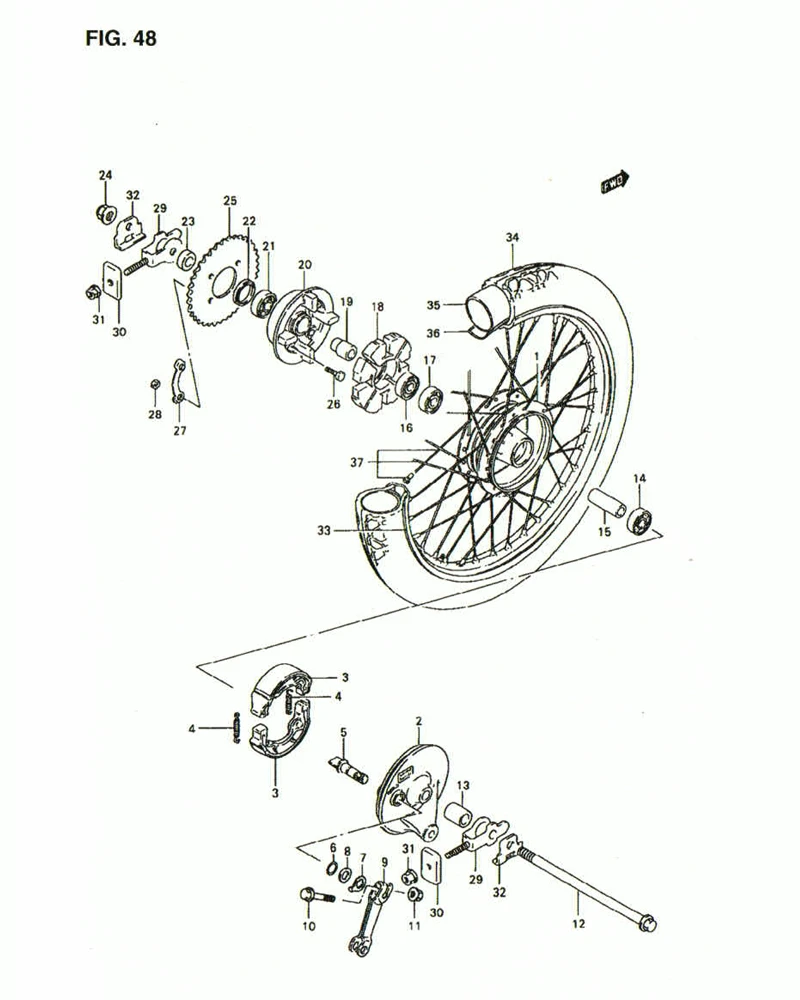

FIG. 48 REAR WHEEL

FIG. 48 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 64110-35351-000
SUB: 64110-35301L000		 DRUM, rear hub 1 Rp208.500
1-1 64110-35351-000
SUB: 64110-35301-000		 DRUM, rear hub 1 Rp208.500
2 64210-46005-000
SUB: 64210-46005L000		 PANEL, rear hub 1 Rp71.000
3 54410-35450-000
SUB: 54410-35020L000		 SHOE, brake 2 Rp60.000
4 09443-07025-000 SPIRNG (L:34) 2 Rp3.500
5 DISCONTINUE
SUB: 54441-29305-000		 SHAFT, brake cam 1 -
6 09280-14003-000 O RING 1 Rp3.000
7 DISCONTINUE
SUB: 54492-35400-000		 PLATE, brake lining 1 -
8 09160-14054-000
SUB: 09160-14003-000		 WASHER 1 Rp12.500
9-1 64451-43020-000 LEVER, brake cam 1 Rp8.500
9-2 84451-43020L000 LEVER, brake cam 1 -
10 DISCONTINUE
SUB: 09103-06045-000		 BOLT 1 -
11 083316-10063000 NUT 1 -
12-1 64711-16H00-000
SUB: 64711-31C20-000		 AXLE, rear 1 Rp24.500
12-2 64711-16H00-000
SUB: 64711-31C20L000		 AXLE, rear 1 Rp24.500
13 DISCONTINUE
SUB: 64731-31C20L000		 SPACER, rear axle, RH 1 -
14-1 08143-63017-000 BEARING, RH 1 Rp30.500
14-2 08143-630171L BEARING, RH 1 -
15 09180-12143-000 SPACER, bearing 1 Rp9.000
16-1 08143-62017-001
SUB: 08143-62017-000		 BEARING, RH 1 Rp24.500
16-2 08143-62017-001
SUB: 08143-62017L000		 BEARING, RH 1 Rp24.500
17-1 08113-62017-000 BEARING, inner LH 1 Rp23.500
17-2 08113-62017-000
SUB: 08113-62017L000		 BEARING, inner LH 1 Rp23.500
18 64651-3D00L-000 ABSORBER, rear hu shock 1 -
19 64733-43000-000 RETAINER,, rear sprocket drum 1 Rp15.500
20-1 64611-01001-000 DRUM, sprocket mounting 1 Rp122.000
20-2 64611-01001-000
SUB: 64611-01001L000		 DRUM, sprocket mounting 1 Rp122.000
21-1 08113-62037-001
SUB: 08113-62037-000		 BEARING 1 Rp20.000
21-2 08113-62037L000 BEARING 1 Rp34.000
22 09285-25008-000
SUB: 09285-25003-000		 OIL SEAL (25X40X6) 1 Rp8.000
23 DISCONTINUE
SUB: 64721-35500L000		 SPACER, rear axle, LH 1 -
24 08319-31128-000 NUT 1 Rp7.500
25 64511-354B0-000
SUB: 64511-35441L000		 SPROCKET, rear (NT:35) 1 Rp108.000
26 DISCONTINUE
SUB: 64541-30D00-000		 BOLT, rear sprocket 4 -
27 09169-08011-000 LOCK WASHER 2 Rp3.500
28 08310-0008B-000
SUB: 08310-00083-000		 NUT 4 Rp15.500
29-1 DISCONTINUE
SUB: 61410-35500-000		 ADJUSTER, chain 2 -
29-2 DISCONTINUE
SUB: 61410-35500L000		 ADJUSTER, chain 2 -
30 DISCONTINUE
SUB: 61420-31C20L000		 GUIDE, chain adjuster 2 -
31 08319-31087-000 NUT 2 Rp16.500
32 DISCONTINUE
SUB: 64712-31CA0L000		 WASHER, guide 2 -
33 DISCONTINUE
SUB: 55311-03021L000		 WHEEL RIM (1. 40X17) 1 -
34 65110-30D21L000 TIRE (2. 75-17-4PR) IRC 1 -
35 55200-09620-000 TUBE ASSY, INNER 1 -
36 55261-01010-000 PROTECTOR inner tube 1 -
37-1 65320-03021-000 SPOKE SET, rear wheel 1 Rp43.500
37-2 65320-03021-000
SUB: 65320-03021L000		 SPOKE SET, rear wheel 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
