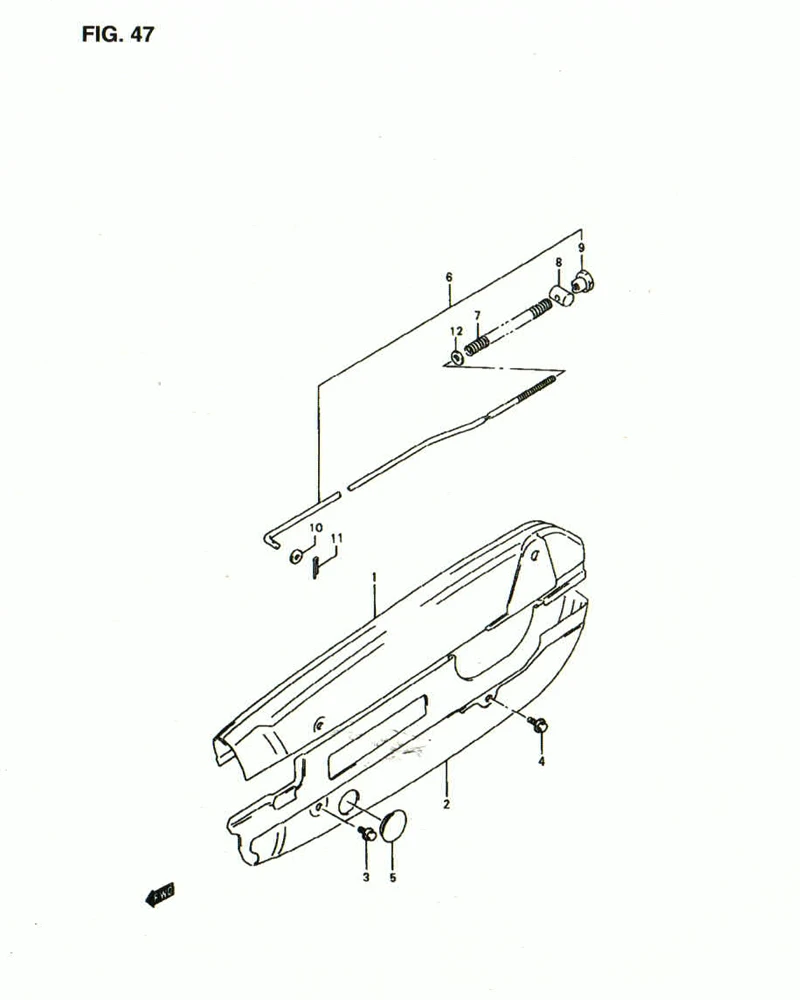

FIG. 47 CHAIN CASE

FIG. 47 CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61310-31CA0L000		 CASE, chain upper 1 -
2 DISCONTINUE
SUB: 61320-31C11L000		 CASE, chain lower 1 -
3 09116-06014-000 BOLT, FRONT (6X6) 2 Rp4.500
4 DISCONTINUE
SUB: 09116-06019-000		 BOLT, rear (6X8) 2 -
5-1 DISCONTINUE
SUB: 09250-30001-000		 CAP, chain case 1 -
5-2 09250-30001-L CAP, chain case 1 -
6 DISCONTINUE
SUB: 43300-30D10L000		 ROD ASSY, brake 1 -
7 09440-09004-000 .SPRING 1 Rp12.500
8 09209-11002-000 .PIN 1 Rp7.500
9 09150-06001-000 .NUT 1 Rp9.500
10 08322-0105A-000
SUB: 08322-01053-000		 .WASHER 1 Rp3.000
11 04111-2020A-000
SUB: 04111-20208-000		 .COTTER PIN 1 Rp5.000
12 DISCONTINUE
SUB: 08322-01063-000		 .WASHER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
