Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

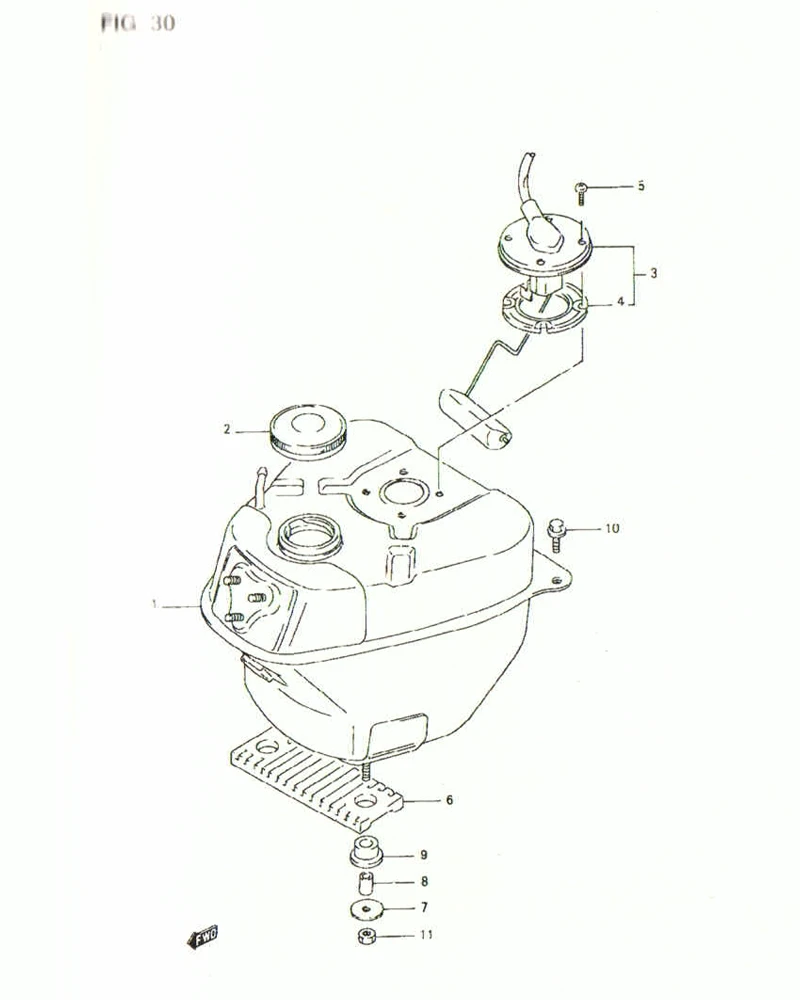

FIG. 30 FUEL TANK

FIG. 30 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 44110-31CA0L000		 TANK, fuel 1 -
2-1 44210-35014AS01
SUB: 44210-24D10-000		 CAP, fuel tank 1 Rp21.500
2-2 44210-35014AS01
SUB: 44210-35014L000		 CAP, fuel tank 1 Rp21.500
3 34810-31C21-000
SUB: 34810-31C20-000		 GUAGE ASSY, fuel level 1 Rp488.000
4 DISCONTINUE
SUB: 34825-02100-000		 .GASKET 1 -
5 02112-3512A-000
SUB: 02112-35123-000		 SCREW 4 Rp33.500
6-1 44542-31C00-000 CUSHION, fuel tank lower No. 1 1 -
6-2 DISCONTINUE
SUB: 44542-31C00L000		 CUSHION, fuel tank lower No. 1 1 -
7 DISCONTINUE
SUB: 09160-06114-000		 WASHER, fuel tank lower 2 -
8 09180-06293-000 SPACHER, fuel tank lower 2 Rp14.500
9-1 09320-10022-000 CUSHION, fuel tank lower No. 2 2 Rp3.500
9-2 09320-10022-000
SUB: 09320-10022L000		 CUSHION, fuel tank lower No. 2 2 Rp3.500
10 09116-06168-000 BOLT, fuel tank rear 2 Rp15.000
11 08310-0006B-000
SUB: 08310-00063-000		 NUT, fuel tank lower 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
