Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

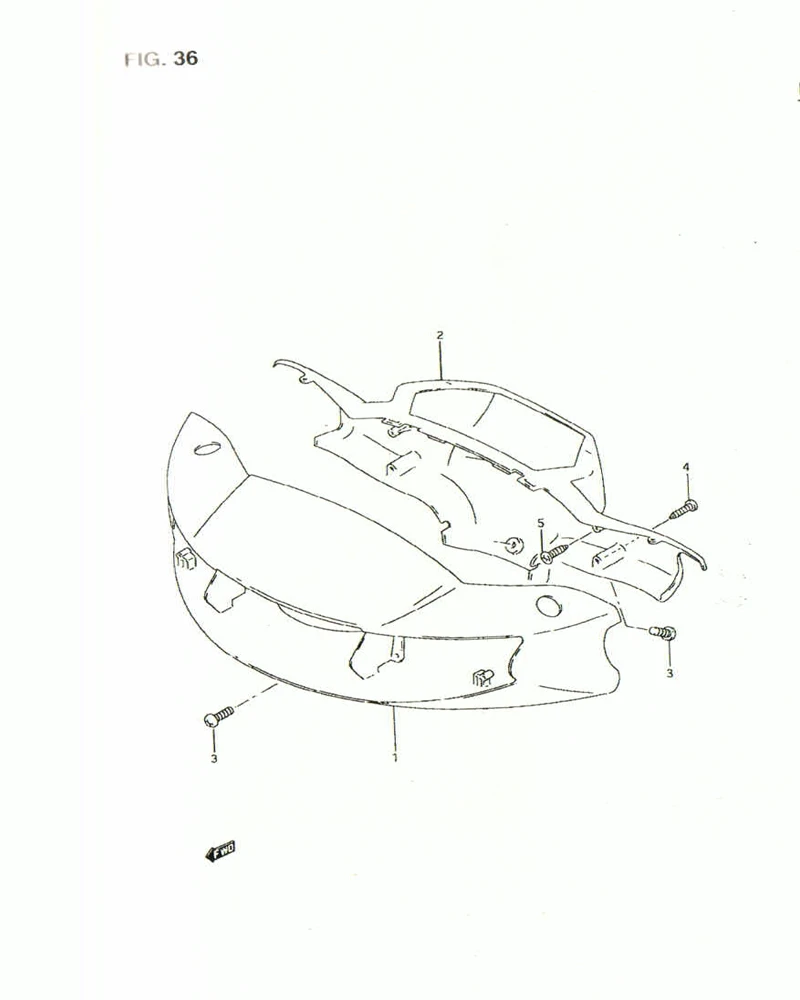

FIG. 36 HANDLE COVER

FIG. 36 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 56311-31CA0L000 COVER, handle, front 1 -
2-1 56321-31CAC0L COVER, handle, rear 1 -
2-2 56321-31CC0-000
SUB: 56321-31CC0L000		 COVER, handle, rear 1 Rp42.000
3 02142-0512A-000
SUB: 02142-05123-000		 SCREW, front/rear 2 Rp3.500
4 03511-0416A-000
SUB: 03511-04163-000		 SCREW, rear side 2 Rp11.000
5 03511-0516A-000
SUB: 03511-05163-000		 SCREW, rear upper 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
