  5. FIG. 42 STEERING STEM

Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

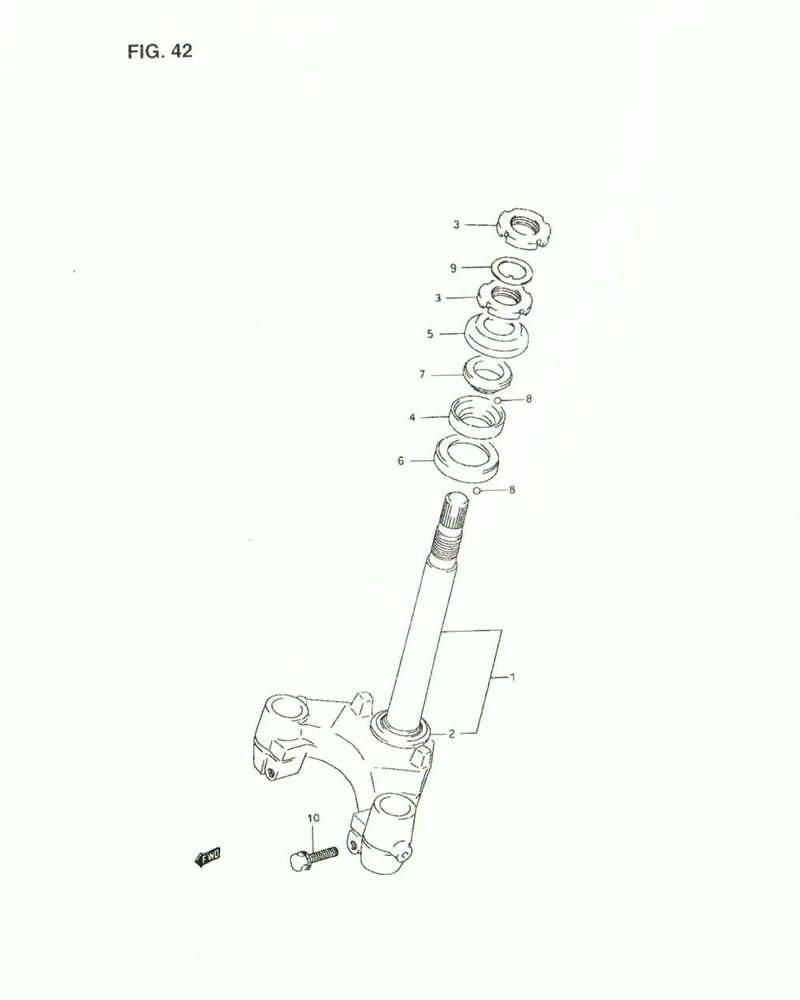

FIG. 42 STEERING STEM

FIG. 42 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1-1 51410-31CB1-000 STEM, steering 1 -
1-2 DISCONTINUE
SUB: 51410-31CB1L000		 STEM, steering 1 -
2 51622-41H00-000
SUB: 51622-35400-000		 .RACE 1 Rp56.500
3 51631-05000-000 NUT, steering stem 2 Rp20.000
4 51611-20002-000 RACE, inner upper 1 Rp55.500
5 51643-06001-000 DUST SEAL 1 Rp3.000
6 51612-35400-000 RACE, inner lower 1 Rp24.000
7 51621-25000-000 RACE, outer upper 1 Rp23.000
8 06111-06004-000
SUB: 06111-06003-000		 BALL, steering steel 59 Rp1.000
9 09166-24001-000 WASHER 1 Rp4.500
10 01570-08307-000 BOLT, stem 2 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
