Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

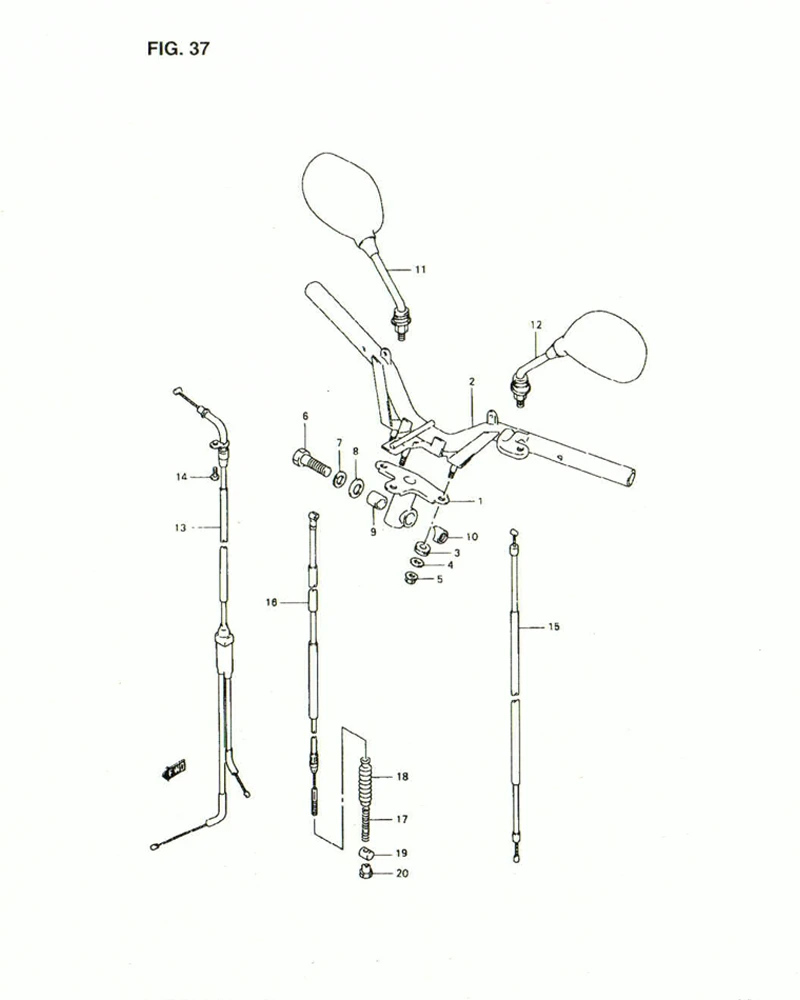

FIG. 37 HANDLEBAR

FIG. 37 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51310-30D00L000		 BRACKET, front fork upper 1 -
2 DISCONTINUE
SUB: 56110-30D00L000		 HANDLEBAR 1 -
3 DISCONTINUE
SUB: 56241-30D00L000		 CUSHION, handlebar 6 -
4 09160-08134-000
SUB: 09160-08004-000		 WASHER 3 Rp7.500
5 08319-31087-000 NUT 3 Rp16.500
6 09100-12061-000 BOLT 1 Rp29.000
7 DISCONTINUE
SUB: 08321-01123-000		 LOCK WASHER 1 -
8 08322-0112B-000
SUB: 08322-01123-000		 WASHER 1 Rp13.500
9 51358-35420-000 STOPER, RH 1 Rp108.000
10 51359-35410-000 STOPPER, LH 1 Rp112.000
11 56500-21D00-000
SUB: 56500-31CA0L000		 MIRROR ASY, rear view, RH 1 Rp84.500
12 56600-21D00-000
SUB: 56600-31CA0L000		 MIRROR ASY, rear view, LH 1 Rp84.500
13 58300-30D01-000
SUB: 58300-30D00L000		 CABLE ASSY, throttle 1 Rp365.500
14 02112-0512A-000
SUB: 02112-05123-000		 SCREW 1 Rp2.500
15 58410-30D01-000
SUB: 58410-30D01L000		 CABLE, starter 1 Rp31.000
16 58110-12B00-000
SUB: 58110-12B00L000		 CABLE, front brake 1 Rp54.000
17 09440-06003-000 SPRING 1 Rp14.000
18 09287-07001-000 DUST SEAL 1 Rp12.000
19 DISCONTINUE
SUB: 09209-10001-000		 PIN 1 -
20 09150-05101-000 NUT 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
