Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

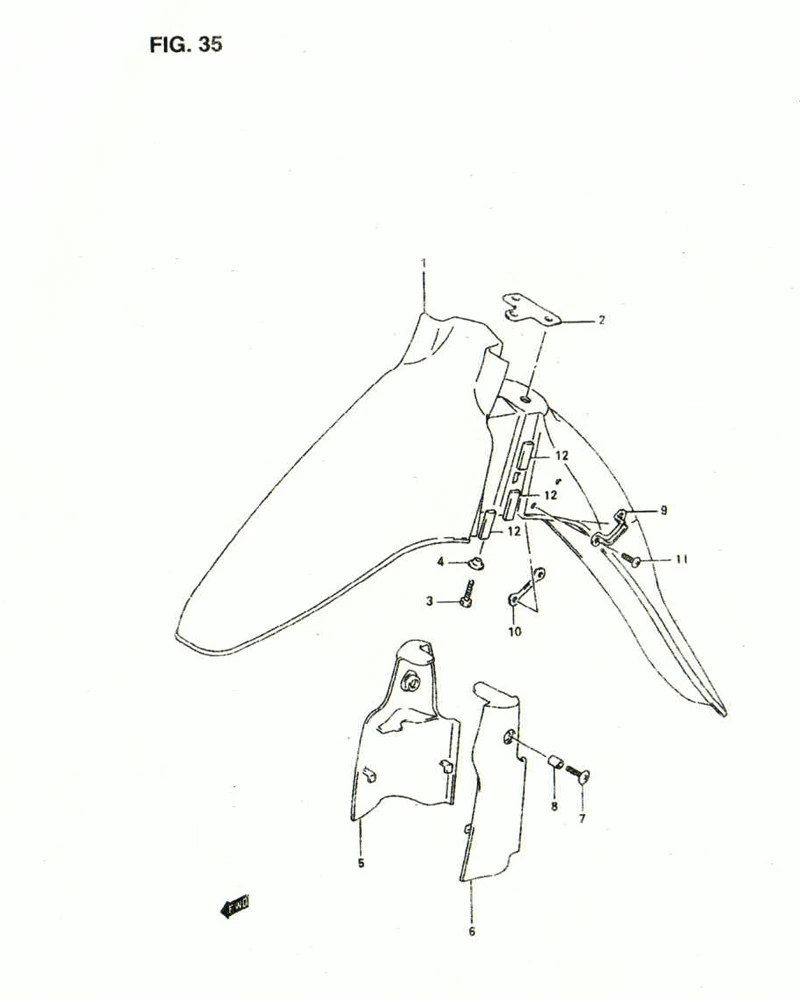

FIG. 35 FRONT FENDER

FIG. 35 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 53111-31CB0L000 FENDER, front 1 -
2-1 53124-35400-000 REINFORCEMENT, front fender 1 Rp35.000
2-2 DISCONTINUE
SUB: 53124-35400L000		 REINFORCEMENT, front fender 1 -
3 01500-0616A-000
SUB: 01500-06163-000		 BOLT, front fender 3 Rp6.500
4 09169-06060-000 SPACER, front tender 3 Rp13.000
5 51881-31CB0L000 COVER, fork side RH 1 -
6 51882-31CB0L000 COVER, fork side LH 1 -
7 02142-0620A-000
SUB: 02142-06207-000		 SCREW, fork cover side 2 Rp5.500
8 09180-06263-000 SPACER, fork cover side 2 Rp12.500
9 58620-35500L000 GUIDE, cable 1 -
10 DISCONTINUE
SUB: 01500-06123-000		 BOLT 1 -
11 09160-06079-000 WASHER, outer 1 Rp10.500
12 09169-06032-000
SUB: 09169-06033-000		 WASHER, inner 1 Rp7.500
13 DISCONTINUE
SUB: 53145-31C00L000		 CUSHION, front rener 6 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
