Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

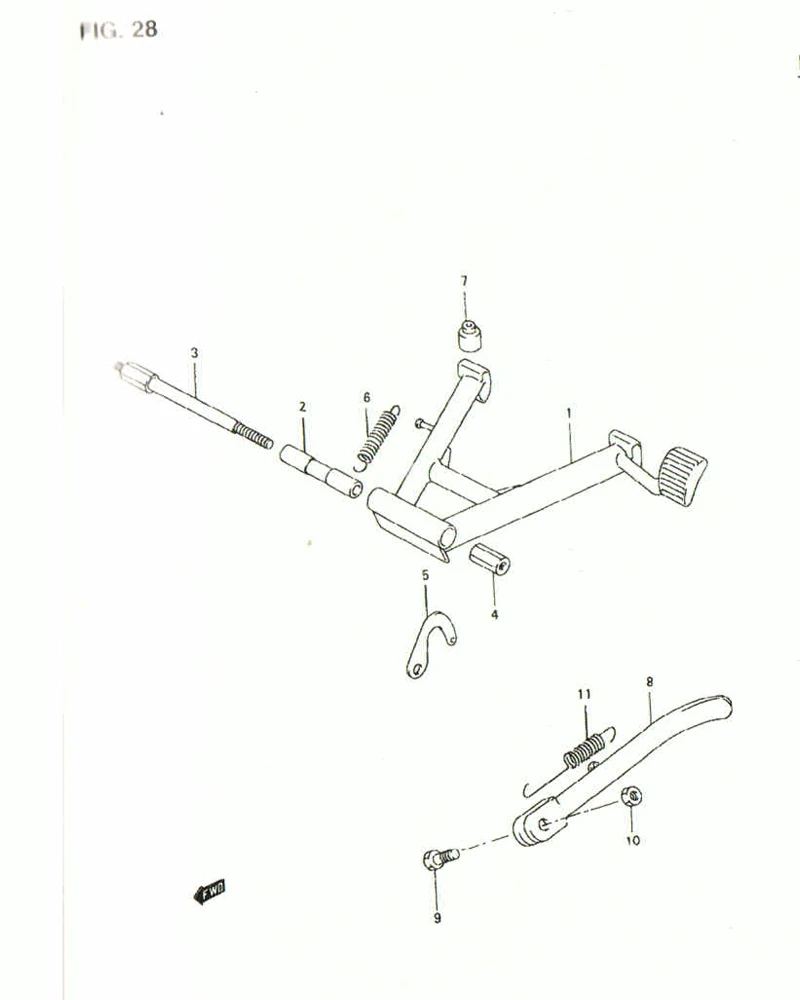

FIG. 28 STAND

FIG. 28 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 42100-31CB0L000		 STAND, center 1 -
2 42211-03001-000 SPACER, center stand 1 Rp23.500
3 42221-31C00T000
SUB: 42221-31C11-000		 BOLT, center stand 1 Rp104.500
4 42231-09000-000 NUT 1 Rp42.000
5 42251-03004-000 HOOK, center stand 1 Rp35.500
6-1 09443-16007-000 SPRING 1 Rp6.500
6-2 09443-16007-000
SUB: 09443-16007L000		 SPRING 1 Rp6.500
7 09321-10001-000 CUSHION 1 Rp6.500
8 42310-23F10-000
SUB: 42310-31CD0L000		 STAND, prop 1 Rp41.500
9 01550-1020A-000
SUB: 09111-10014-000		 BOLT 1 Rp21.000
10 09159-10097-000 NUT 1 Rp33.500
11-1 09443-14022-000 SPRING 1 Rp5.000
11-2 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
