Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

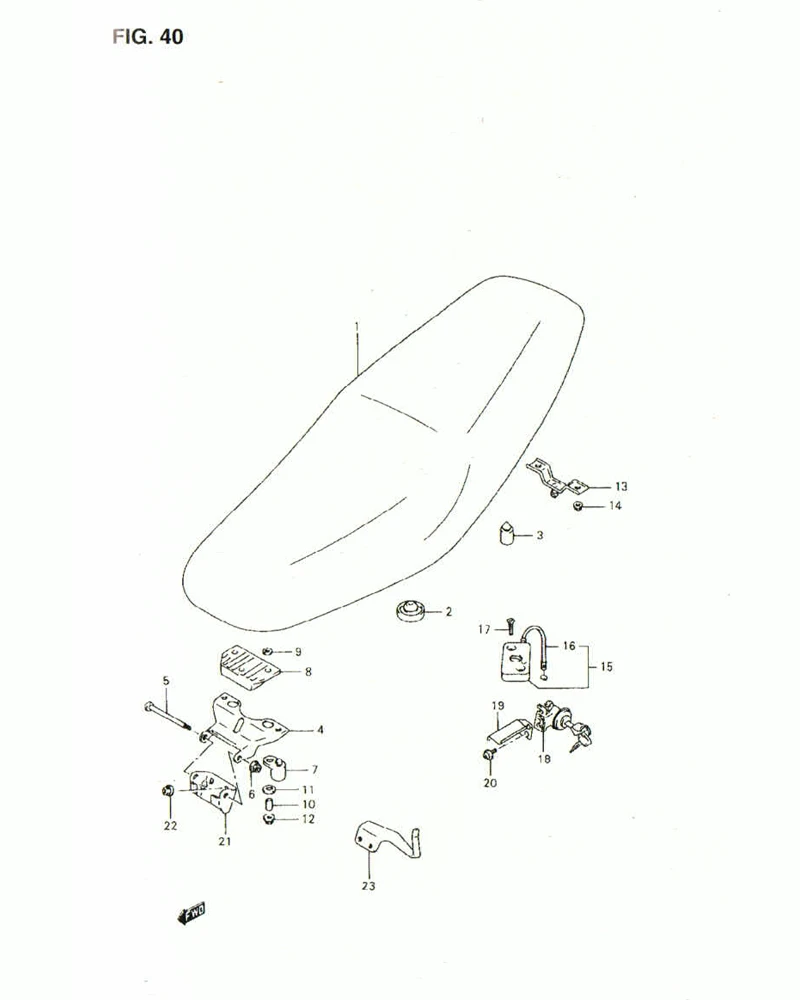

FIG. 40 SEAT

FIG. 40 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-31XA2L000 SEAT ASSY 1 -
2-1 09321-14005-000 .CUSHION 2 Rp28.500
2-2 09321-14005L000 CUSHION 2 -
3 54149-35400-000 .CUSHION, rear 2 -
4 DISCONTINUE
SUB: 45285-31CD0L000		 BRACKET, seat support, front 1 -
5 09111-06001-000 BOLT 1 Rp19.000
6 08361-3506A-000
SUB: 08361-35068-000		 NUT 1 Rp4.000
7 45148-31CD0-000 CUSHION, lower 2 -
8 DISCONTINUE
SUB: 45149-31CD0L000		 CUSHION, upper 1 -
9 DISCONTINUE
SUB: 08322-01063-000		 WASHER 2 -
10 DISCONTINUE
SUB: 09180-06249-000		 SPACER 2 -
11 09160-06109-000
SUB: 09160-06039-000		 WASHER 2 Rp13.000
12 08316-2006A-000
SUB: 08316-20063-000		 NUT 2 Rp16.500
13 DISCONTINUE
SUB: 45210-35420L000		 STRIKER, seat lock 1 -
14 08316-2006A-000
SUB: 08316-20063-000		 NUT 2 Rp16.500
15 DISCONTINUE
SUB: 45220-31CA0L000		 BRACKET, seat support, rear 1 -
16 DISCONTINUE
SUB: 45280-20C00-000		 .CABLE, seat lock 1 -
17 02122-06253-000 SCREW 2 -
18 DISCONTINUE
SUB: 95700-31C00L000		 LOCK, seat 1 -
19 DISCONTINUE
SUB: 45289-31CB0L000		 GUARD, seat lock 1 -
20 02112-75103-000 SCREW 2 -
21 DISCONTINUE
SUB: 45260-31C00L000		 HOLDER, seat 1 -
22 08316-2006A-000
SUB: 08316-20063-000		 NUT, seat holder 3 Rp16.500
23 DISCONTINUE
SUB: 95721-31C10L000		 HOLDER, helmet 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
