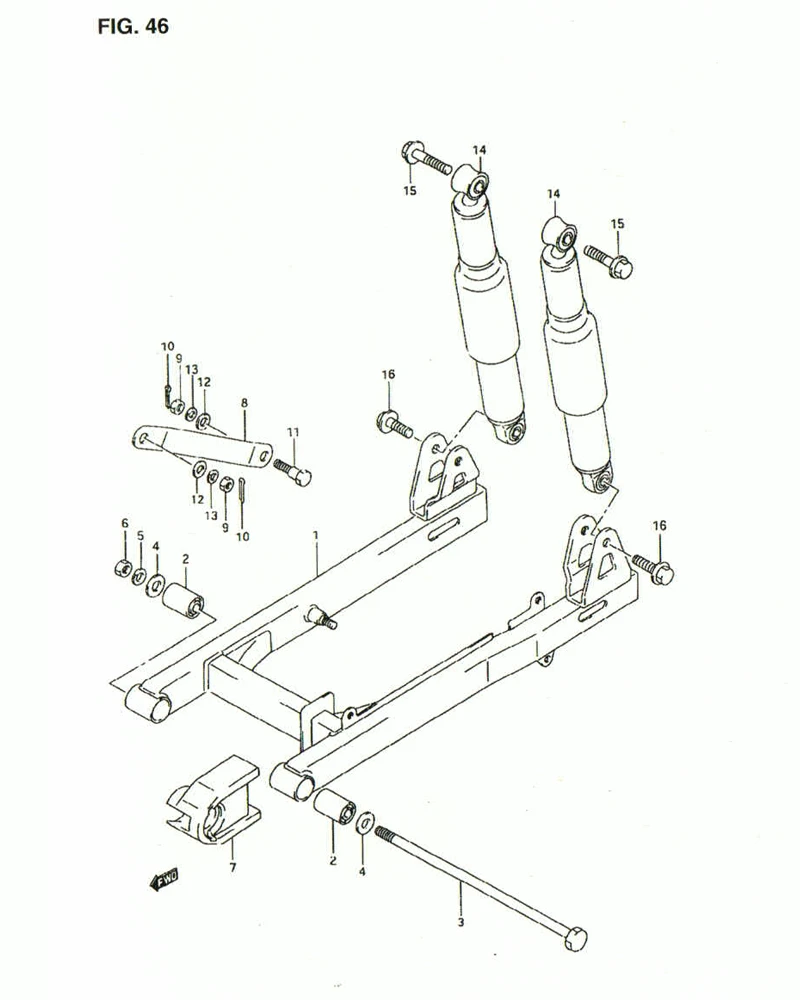

FIG. 46 REAR SWINGING ARM

FIG. 46 REAR SWINGING ARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-31CAOL000 SWINGING ARM, rear 1 -
2 09319-10009-000 BUSHING 2 Rp18.000
3-1 61211-31C00-000 SHAFT, rear swinging arm 1 Rp15.500
3-2 61211-31C00-000
SUB: 61211-31C00L000		 SHAFT, rear swinging arm 1 Rp15.500
4 08322-01107-000 WASHER 2 Rp13.000
5 DISCONTINUE
SUB: 09162-10008-000		 LOCK WASHER 1 -
6 08310-00107-000 NUT 1 Rp15.000
7 DISCONTINUE
SUB: 61273-31C10L000		 BUFFER, chain thuch defense 1 -
8 64311-31C10L000 TORQUE LINK, rear 1 -
9 09140-08008-000 NUT 2 Rp10.500
10 04111-2020A-000
SUB: 04111-20208-000		 COTTER PIN 2 Rp5.000
11 09111-08013-000 BOLT 1 Rp5.500
12 08322M0108A-000
SUB: 08322-01083-000		 WASHER 2 Rp5.500
13 09162-08008-000 LOCK WASHER 2 Rp16.500
14 DISCONTINUE
SUB: 62100-31CB0L000		 ABSORBER ASSY, rear shock 2 -
15 DISCONTINUE
SUB: 09116-10022-000		 BOLT, shock absorber (10X43) 2 -
16 09103-10229-000 BOLT, lower (10x32) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
