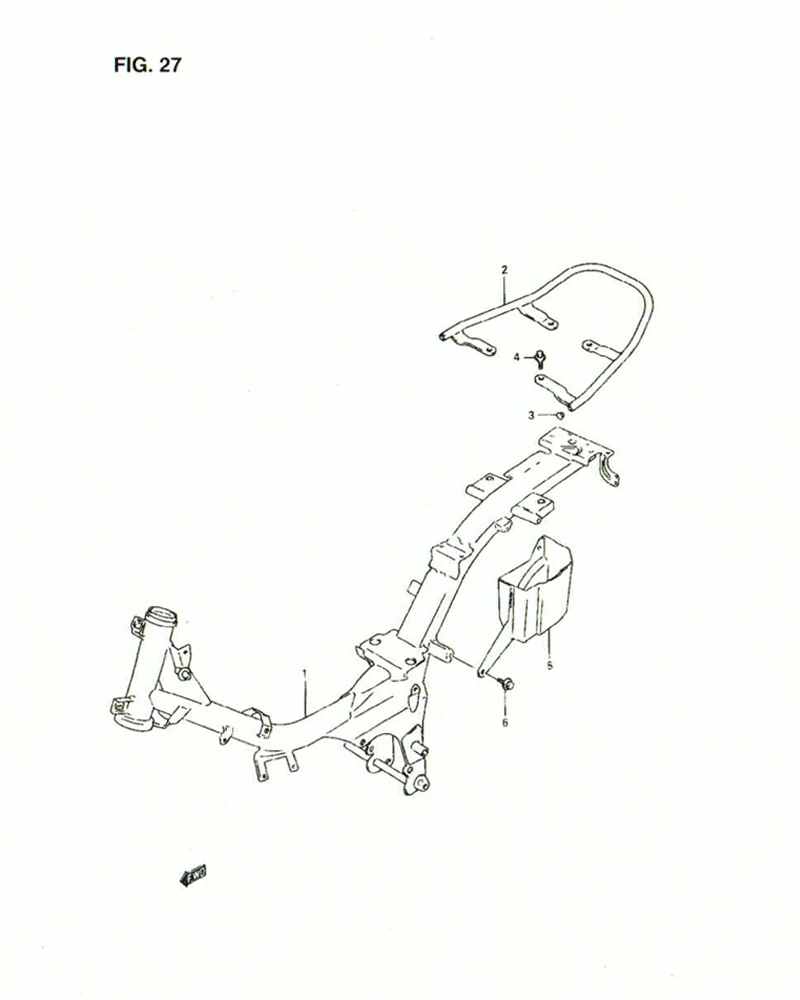

FIG. 27 FRAME

FIG. 27 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100-30D01L000		 FRAME 1 -
2 DISCONTINUE
SUB: 46210-31CB0L000		 HANDLE, pillion rider 1 -
3 09250-14006-000 PLUG 2 Rp18.500
4 01550-0820A-000
SUB: 01550-08203-000		 BOLT 4 Rp5.500
5 DISCONTINUE
SUB: 47471-30D00L000		 BOX, under 1 -
6 09116-06168-000 BOLT 2 Rp15.000
7-1 DISCONTINUE
SUB: 68000-31CC1L019		 STRIPPING SET (unit black) 1 -
7-2 DISCONTINUE
SUB: 68000-31CC1L046		 STRIPPING SET (unit violet) 1 -
7-3 68000-31CC1L056 STRIPPING SET (unit green) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
