Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG. 29 REAR BRAKE FIG. 30 FUEL TANKFIG. 31 FUEL COCKFIG. 32 FRAME COVER FIG. 33 LEG SHIELDFIG. 34 FRONT FORK COVERFIG. 35 FRONT FENDERFIG. 36 HANDLE COVERFIG. 37 HANDLEBARFIG. 38 HANDLE LEVERFIG. 39 REAR FENDERFIG. 40 SEATFIG. 41 FRONT DAMPERFIG. 42 STEERING STEMFIG. 46 REAR SWINGING ARMFIG. 47 CHAIN CASEFIG. 48 REAR WHEELFIG. 43 FRONT WHEEL FIG. 26 HANDLE SWITCH

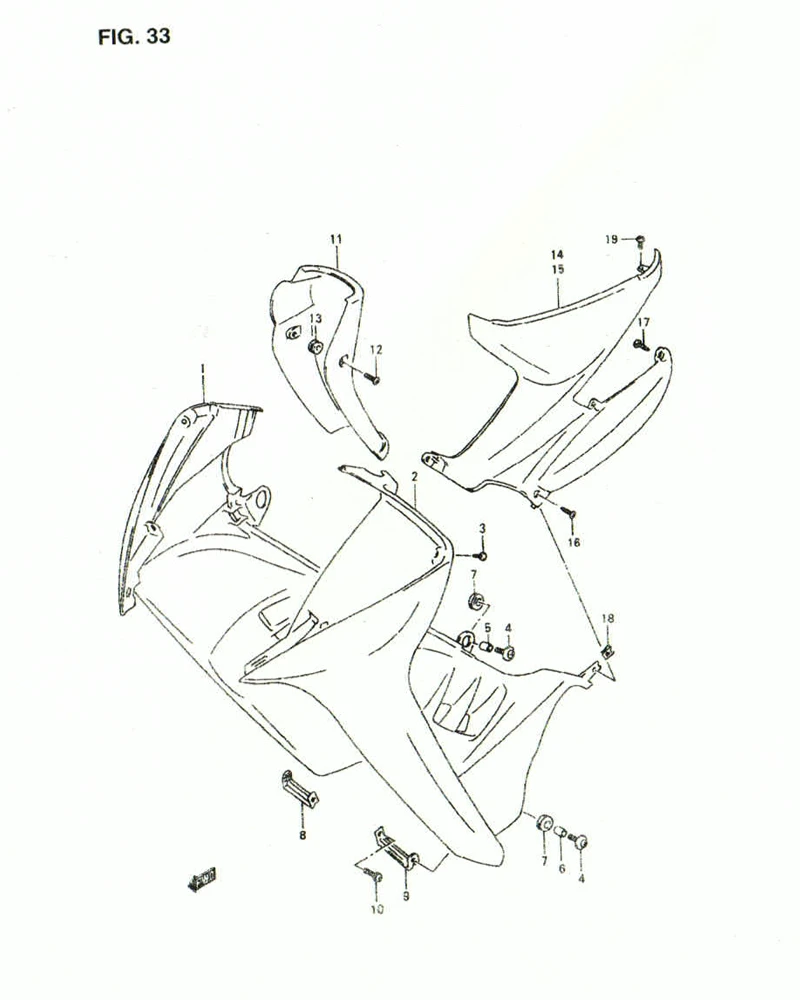

FIG. 33 LEG SHIELD

FIG. 33 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111-30D00L000 SHIELD, leg RH 1 -
2 48121-30D00L000 SHIELD, leg LH 1 -
3 03541-0416A-000
SUB: 03541-04163-000		 SCREW, upper 4 Rp3.500
4 09136-06004-000
SUB: 09136-06009-000		 SCREW 4 Rp14.500
5 09180-06266-000 SPACER, center 2 Rp25.000
6 09180-06263-000 SPACER, lower 2 Rp12.500
7 09320-09026-000 CUSHION 4 Rp12.500
8 48140-30D01-000
SUB: 48140-30D01L000		 BRACE, RH 1 Rp10.500
9 48150-30D01-000
SUB: 48150-30D01L000		 BRACE, LH 1 Rp10.500
10 02112-3616A-000
SUB: 02112-36163-000		 SCREW, brace 2 Rp14.000
11 DISCONTINUE
SUB: 48131-31CA1L000		 SHIELD, leg center 1 -
12 02142-0610A-000
SUB: 02142-06103-000		 SCREW 2 Rp3.500
13 09320-12036-000
SUB: 09320-12029-000		 CUSHION 2 Rp13.500
14 DISCONTINUE
SUB: 48161-31CA1L000		 SHIELD, leg side RH 1 -
15 DISCONTINUE
SUB: 48171-31CA1L000		 SHIELD, leg side LH 1 -
16 03241-0516A-000
SUB: 03241-05163-000		 SCREW 2 Rp17.000
17 02142-0516A-000
SUB: 02142-05163-000		 SCREW 2 Rp3.500
18 09148-05020-000 NUT 2 Rp13.500
19 02142-0610A-000
SUB: 02142-06103-000		 SCREW, center 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
