Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

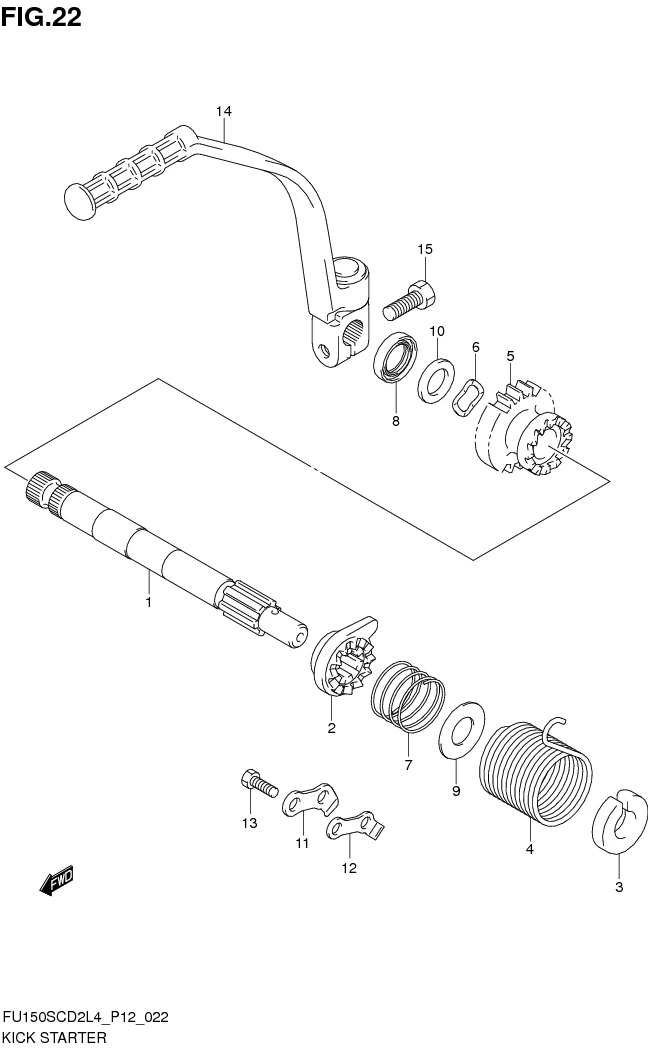

FIG.22 KICK STARTER

FIG.22 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-47E20-000
SUB: 26211B47E20N000		 SHAFT, KICK STARTER 1 Rp59.500
2 26231-09430-000
SUB: 26231B09430N000		 STARTER, KICK 1 Rp61.500
3 DISCONTINUE
SUB: 26221B30A00N000		 GUIDE, SPRING 1 -
4 09448-38004-000
SUB: 09448B38004N000		 SPRING 1 Rp21.000
5 26241-47E30-000
SUB: 26241B47E30N000		 GEAR, DRIVE (NT:18) 1 Rp89.000
6 26242-47E00-000
SUB: 26242B47E00N000		 WASHER, KICK DRIVE GEAR 1 Rp19.000
7 09440-30007-000
SUB: 09440B30007N000		 SPRING 1 Rp3.000
8 09283-16008-000
SUB: 09283B16008N000		 OIL SEAL (16X24X5) 1 Rp9.500
9 08211-14321-000
SUB: 08211B14321N000		 WASHER 1 Rp10.500
10 09160-16003-000
SUB: 09160B16003N000		 WASHER (16X30.5X1.0) 1 Rp9.000
11 26232-09410-000
SUB: 26232B09401N000		 GUIDE, KICK STARTER 1 Rp6.500
12 26233-09400-000
SUB: 26233B09400N000		 STOPPER, KICK STARTER 1 Rp3.000
13 01500-0616A-000
SUB: 01500B0616AN000		 BOLT 2 Rp6.500
14 26300-25G00-000
SUB: 26300B25G00N000		 LEVER ASSY, KICK STARTER 1 Rp90.000
15 01500-0825B-000
SUB: 01500B0825BN000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
