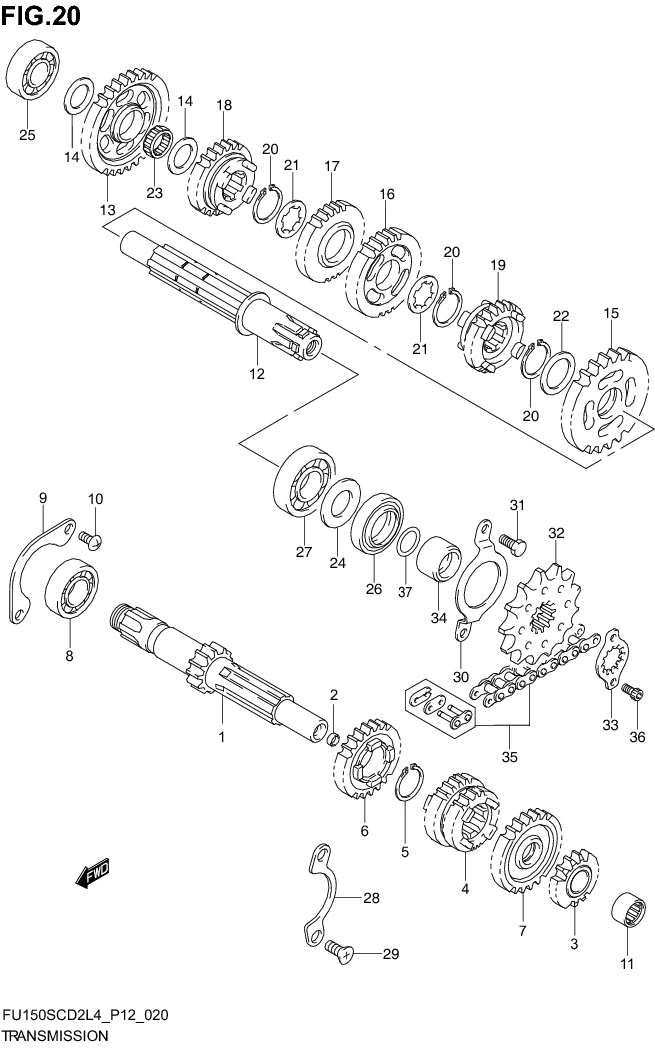

FIG.20 TRANSMISSION

FIG.20 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24121-25G11-000
SUB: 24121B25G11N000		 COUNTERSHAFT (NT:12) 1 Rp157.000
2 24125-25G00-000
SUB: 24125B25G00N000		 PLUG 2 Rp4.000
3 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
3 24221-25G10-000
SUB: 24221B25G10N000		 GEAR, 2ND DRIVE (NT:14) 1 Rp63.500
4 24231-25G10-000
SUB: 24231B25G10N000		 GEAR, 3RD/4TH (NT:19/21) 1 Rp105.500
5 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 1 Rp10.000
6 24251-25G10-000
SUB: 24251B25G10N000		 GEAR,5TH DRIVE (NT:23) 1 Rp70.000
7 24261-25G20-000
SUB: 24261B25G20N000		 GEAR,6TH DRIVE (NT:25) 1 Rp74.500
8 09262-20159-000
SUB: 09262B20159N000		 BEARING (20X47X14) 1 Rp32.000
9 24741-12B00-000
SUB: 24741B12B00N000		 RETAINER, COUNTER BEARING 1 Rp14.500
11 09262-15L06-000
SUB: 09262B15L06N000		 BEARING, COUNTER SHAFT LH 1 Rp34.000
12 24131-25G10-000
SUB: 24131B25G10N000		 SHAFT, DRIVE 1 Rp125.500
13 24311-25G10-000
SUB: 24311B25G10N000		 GEAR,1ST DRIVEN (NT:33) 1 Rp78.500
14 08211-15251-000
SUB: 08211B15251N000		 WASHER 2 Rp4.500
15 24321-25G20-000
SUB: 24321B25G20N000		 GEAR, 2ND DRIVEN (NT:25) 1 Rp79.500
16 24331-25G10-000
SUB: 24331B25G10N000		 GEAR, 3RD DRIVEN (NT:26) 1 Rp77.500
17 24341-25G10-000
SUB: 24341B25G10N000		 GEAR, 4TH DRIVEN (NT:23) 1 Rp76.500
18 24351-25G10-000
SUB: 24351B25G10N000		 GEAR,5TH DRIVEN (NT:21) 1 Rp97.500
19 24361-25G10-000
SUB: 24361B25G10N000		 GEAR,6TH DRIVEN (NT:20) 1 Rp87.500
20 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 3 Rp10.000
21 09167-20011-000
SUB: 09167B20011N000		 WASHER (20.5X25X0.5) 2 Rp7.500
22 09181-20167-000
SUB: 09181B20167N000		 WASHER (20X28X1.0) 1 Rp2.500
23 09263-15023-000 BEARING (15X42X13) 1 Rp37.000
24 24359-05200-000
SUB: 24359B05200N000		 WASHER, OIL SEALING 1 Rp12.000
25 08113-62027-000 BEARING 1 Rp103.500
26 09283-27023-000
SUB: 09283B27L01N000		 OIL SEAL (27X40X6) 1 Rp21.500
27 09262-20159-000
SUB: 09262B20159N000		 BEARING (20X47X14) 1 Rp32.000
28 DISCONTINUE
SUB: 24741-05200-000		 RETAINER, DRIVE SHAFT 1 -
29 02122-0612A-000
SUB: 02122B0612AN000		 SCREW 2 Rp3.500
30 24751-05210-000
SUB: 24751B05210N000		 RETAINER, DRIVE SHAFT 1 Rp8.500
31 01500-0610A-000
SUB: 01500B0610AN000		 BOLT 2 Rp6.500
32 27511-25G20-000
SUB: 27511B25G10N000		 SPROCKET, ENGINE (NT:14) 1 Rp41.000
33 27512-25G00-000
SUB: 27512B25G00N000		 PLATE, ENGINE SPROCKET 1 Rp8.500
34 27531-25G00-000
SUB: 27531B25G00N000		 SPACER, ENGINE SPROCKET 1 Rp18.500
35 27600-01G30-120
SUB: 27600B01G30N120		 CHAIN ASSY (RK428HSB) 1 Rp194.000
36 07130-0610A-000
SUB: 07130B0610AN000		 BOLT 2 Rp5.500
37 09280-19005-000
SUB: 09280B19005N000		 O RING (D:2.4,ID:19.0) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
