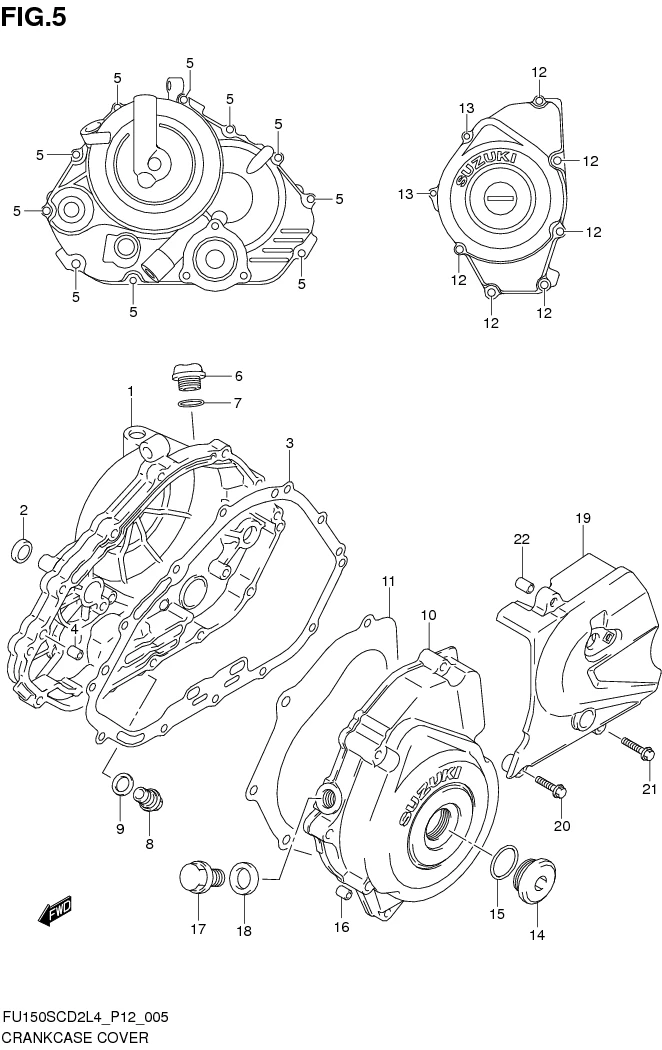

FIG.5 CRANKCASE COVER

FIG.5 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-47E20-000 COVER, CLUTCH 1 Rp731.500
2 11971-45010-000
SUB: 11971B45010N000		 •LENS, OIL LEVEL CHECK 1 Rp33.500
3 11482-25G10-000
SUB: 11482B25G10N000		 GASKET, CLUTCH COVER 1 Rp24.500
4 04211-09149-000
SUB: 04211B09149N000		 PIN 2 Rp3.000
5 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 10 Rp6.500
6 11342-25G00-000
SUB: 11342B25G00N000		 PLUG, OIL FILLER 1 Rp19.000
7 09280-17003-000
SUB: 09280-17003L000		 O RING (D:3.1,ID:16.8) 1 Rp2.000
8 09248-14011-000
SUB: 09248-14005-000		 PLUG 1 Rp18.000
9 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
10 11351-47E10-000 COVER, MAGNETO 1 Rp425.500
11 11483-25G10-000
SUB: 11483B25G10N000		 GASKET, MAGNETO COVER 1 Rp14.500
12 01547-0635A-000
SUB: 01547B0635AN000		 BOLT 7 Rp6.500
13 01547-0650A-000
SUB: 01547B0650AN000		 BOLT 1 Rp7.000
14 09259-26013-000
SUB: 09259-26031-000		 PLUG 1 Rp23.000
15 09280-22008-000
SUB: 09280-22008L000		 O RING (D:3.1,ID:22.7) 1 Rp3.500
16 04211-09149-000
SUB: 04211B09149N000		 PIN 1 Rp3.000
17 09247-14052-000
SUB: 09247-14026-000		 PLUG 1 Rp7.500
18 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
19 DISCONTINUE
SUB: 11360B25G00N000		 COVER, ENGINE SPROCKET 1 -
20 01547-0625A-000
SUB: 01547B0625BN000		 BOLT 1 Rp6.500
21 01547-0630A-000
SUB: 01547B0630BN000		 BOLT 2 Rp6.500
22 04211-09149-000
SUB: 04211B09149N000		 PIN 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
