Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

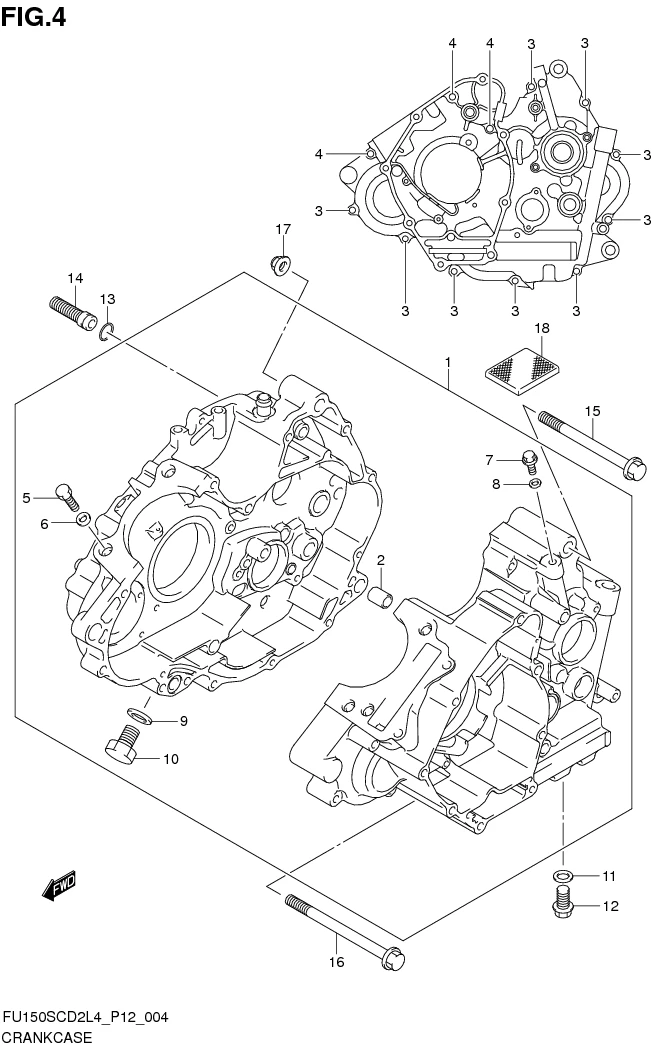

FIG.4 CRANKCASE

FIG.4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-25G30-000
SUB: 11300B25G30N000		 CRANKCASE ASSY 1 Rp1.894.500
2 04211M13189-000
SUB: 04211-13189-000		 •PIN 2 Rp9.000
3 01547-0640B-000
SUB: 01547B0640AN000		 •BOLT 9 Rp7.000
4 01547-0665A-000
SUB: 01547B0665AN000		 •BOLT 3 Rp7.500
5 09247-12103-000
SUB: 09247B12103N000		 •PLUG, BREATHER (12X10) 1 Rp4.000
5 09168-06004-000
SUB: 09168B06004N000		 GASKET (6.2X11X1.2) 1 Rp2.500
6 09168-12002-000
SUB: 09168B12002N000		 •GASKET (12.1X16.2X3.7) 1 Rp10.000
7 DISCONTINUE
SUB: 01550B0612AN000		 •PLUG, OIL GALLERY MISSION 1 -
9 09168-12002-000
SUB: 09168B12002N000		 •GASKET (12.1X16.2X3.7) 1 Rp10.000
10 09247-12103-000
SUB: 09247B12103N000		 •PLUG (12X10) 1 Rp4.000
11 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X3.7) 1 Rp10.000
12 09247-12106-000
SUB: 09247B12106N000		 PLUG 1 Rp8.500 OIL DRAIN
13 09280-04004-000
SUB: 09280B04004N000		 O RING (D:1.2,ID:4.0) 1 Rp3.500
14 09493-24012-000 JET 1 Rp31.500
15 09103-10052-000
SUB: 09103B10052N000		 BOLT (10X120) 1 Rp24.500
16 09103-10148-000
SUB: 09103B10148N000		 BOLT (10X110) 1 Rp23.000
17 08319-3110A-000
SUB: 08319B3110AN000		 NUT 2 Rp4.500
18 11186-25G10-000
SUB: 11186B25G10N000		 SEPARATOR, OIL BREATHER 1 Rp63.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
