Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

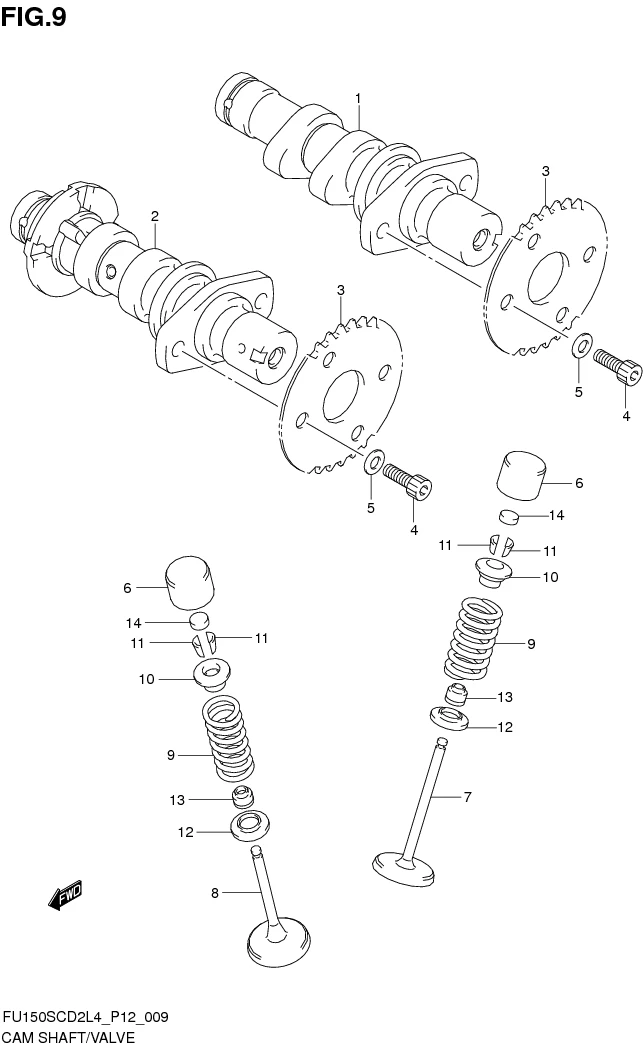

FIG.9 CAM SHAFT/VALVE

FIG.9 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-25G20-000
SUB: 12710-25G01-000		 CAM SHAFT, INTAKE 1 Rp268.000
2 12720-25G01-000 CAM SHAFT, EXHAUST 1 Rp482.500
3 12741-25G00-000
SUB: 12741B25G00N000		 SPROCKET, CAMSHAFT 2 Rp25.500
4 09106-05027-000
SUB: 09106B05027N000		 BOLT 4 Rp3.000
5 08322-0105A-000
SUB: 08322B0105AN000		 WASHER 4 Rp3.000
6-1 12891-25G10-000
SUB: 12891-16E00-000		 TAPPET 4 Rp38.500
6-2 12891-25G10-000
SUB: 12891-25G00-000		 TAPPET 4 Rp38.500
6-3 12891-25G10-000
SUB: 12891B25G10N000		 TAPPET 4 Rp38.500
7-1 12911-16E00-000
SUB: 12911B16E00N000		 VALVE, INTAKE 2 Rp35.500
7-2 12911-16E10-000
SUB: 12911B16E10N000		 VALVE, INTAKE 2 Rp36.500
8-1 12912-16E00-000
SUB: 12912B16E00N000		 VALVE, EXHAUST 2 Rp58.500
8-2 12912-16E10-000
SUB: 12912B16E10N000		 VALVE, EXHAUST 2 Rp45.000
9-1 12921-47E10-000
SUB: 12921B47E00N000		 SPRING, VALVE 4 Rp19.000
9-2 12921-47E10-000
SUB: 12921B47E10N000		 SPRING, VALVE 4 Rp19.000
10 12931-25G20-000
SUB: 12931B25G10N000		 RETAINER, VALVE SPRING 4 Rp9.500
11 12932-32C00-000 COTTER, VALVE 8 Rp12.500
12 12933-16E00-000
SUB: 12933B16E00N000		 SEAT, VALVE SPRING 4 Rp5.000
13 09289-04002-000
SUB: 09289B04002N000		 OIL SEAL (4.5X10X8) 4 Rp10.500
14-21 12892-05C00-220 SHIM, TAPPET (T:2.20) 4 Rp53.500
14-20 12892-05C00-215 SHIM, TAPPET (T:2.15) 4 Rp56.000
14-3 12892-05C00-130 SHIM, TAPPET (T:1.30) 4 Rp57.500
14-19 12892-05C00-210 SHIM, TAPPET (T:2.10) 4 Rp55.000
14-18 12892-05C00-205 SHIM, TAPPET (T:2.05) 4 Rp56.000
14-17 12892-05C00-200 SHIM, TAPPET (T:2.00) 4 Rp55.000
14-16 12892-05C00-195 SHIM, TAPPET (T:1.95) 4 Rp56.000
14-15 12892-05C00-190 SHIM, TAPPET (T:1.90) 4 Rp56.000
14-14 12892-05C00-185 SHIM, TAPPET (T:1.85) 4 Rp56.000
14-13 12892-05C00-180 SHIM, TAPPET (T:1.80) 4 Rp54.000
14-12 12892-05C00-175 SHIM, TAPPET (T:1.75) 4 Rp53.000
14-11 12892-05C00-170 SHIM, TAPPET (T:1.70) 4 Rp56.000
14-10 12892-05C00-165 SHIM, TAPPET (T:1.65) 4 Rp54.500
14-9 12892-05C00-160 SHIM, TAPPET (T:1.60) 4 Rp53.500
14-8 12892-05C00-155 SHIM, TAPPET (T:1.55) 4 Rp56.000
14-7 12892-05C00-150 SHIM, TAPPET (T:1.50) 4 Rp54.500
14-6 12892-05C00-145 SHIM, TAPPET (T:1.45) 4 Rp57.500
14-5 12892-05C00-140 SHIM, TAPPET (T:1.40) 4 Rp56.500
14-4 12892-05C00-135 SHIM, TAPPET (T:1.35) 4 Rp57.500
14-2 12892-05C00-125 SHIM, TAPPET (T:1.25) 4 Rp57.500
14-1 12892-05C00-120 SHIM, TAPPET (T:1.20) 4 Rp57.500
15 12800-05830-000 SHIM SET, TAPPET 1 Rp7.383.500 OPT (NOT ILLUSTRATED)
16 DISCONTINUE
SUB: 99000-69491-000		 •CASE, TAPPET SHIM 1 - OPT (NOT ILLUSTRATED)

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
